AR50 comes with dual motors and dual batteries, offering more power, range, and load capacity than the AR20—perfect for exploring wider horizons.

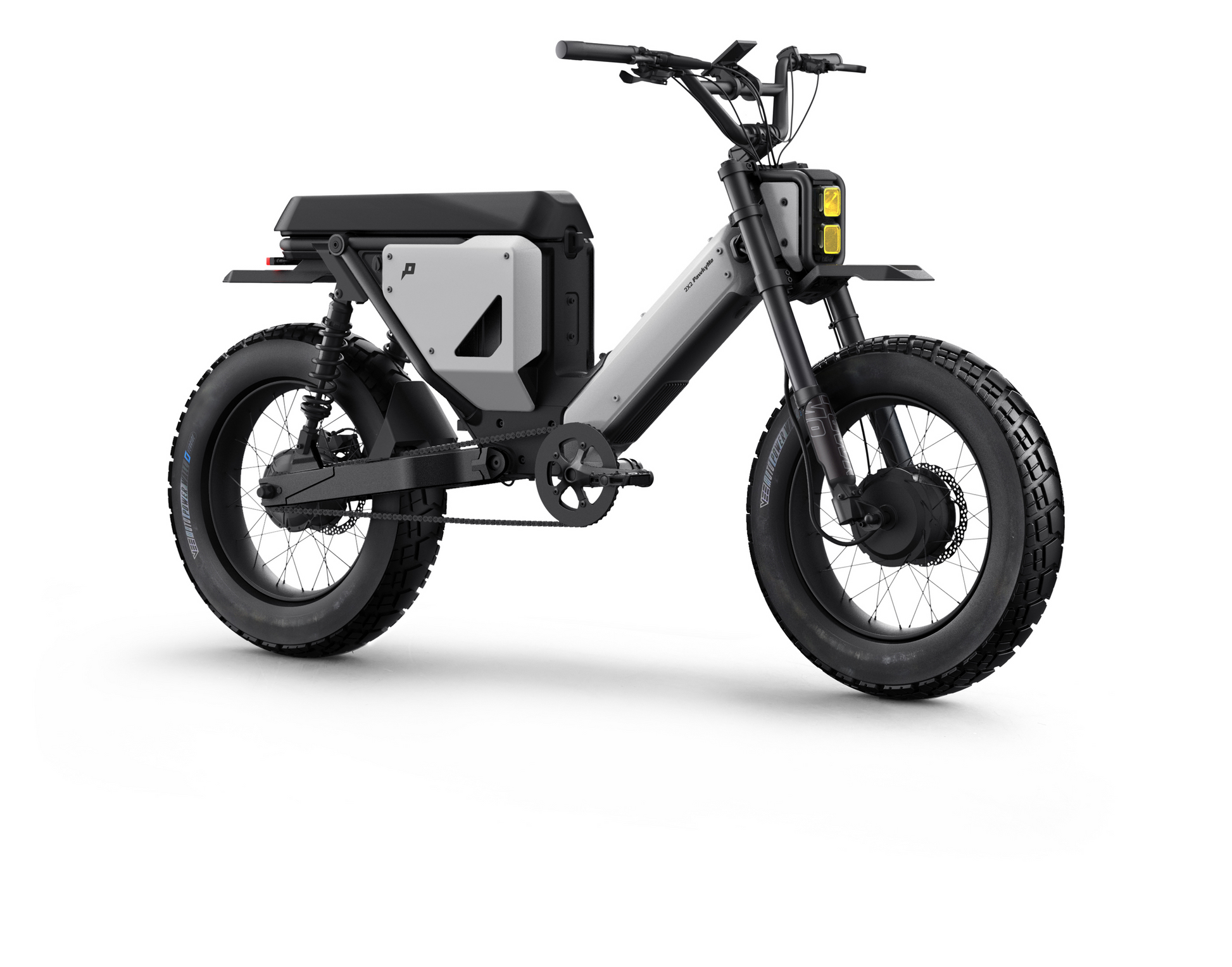

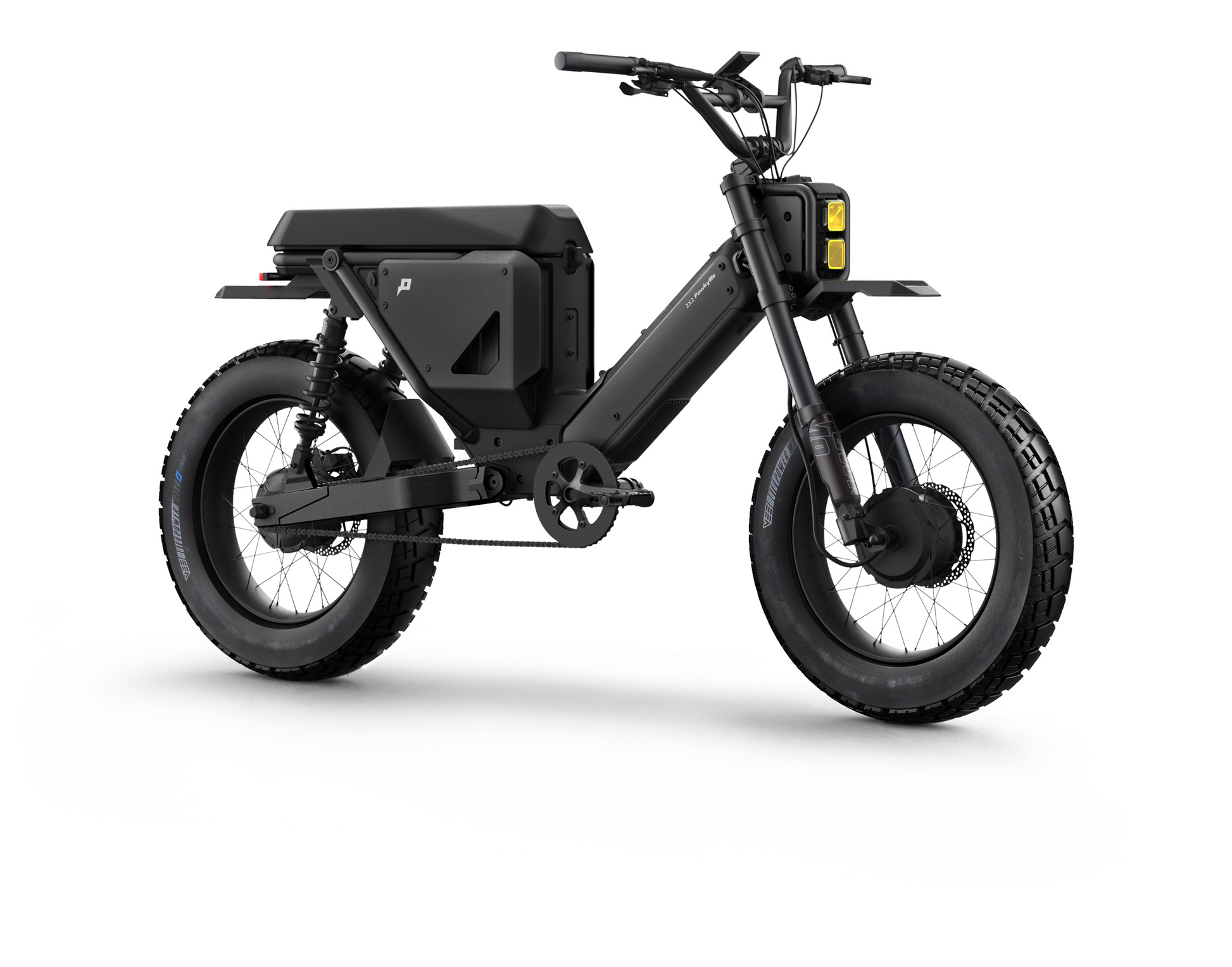

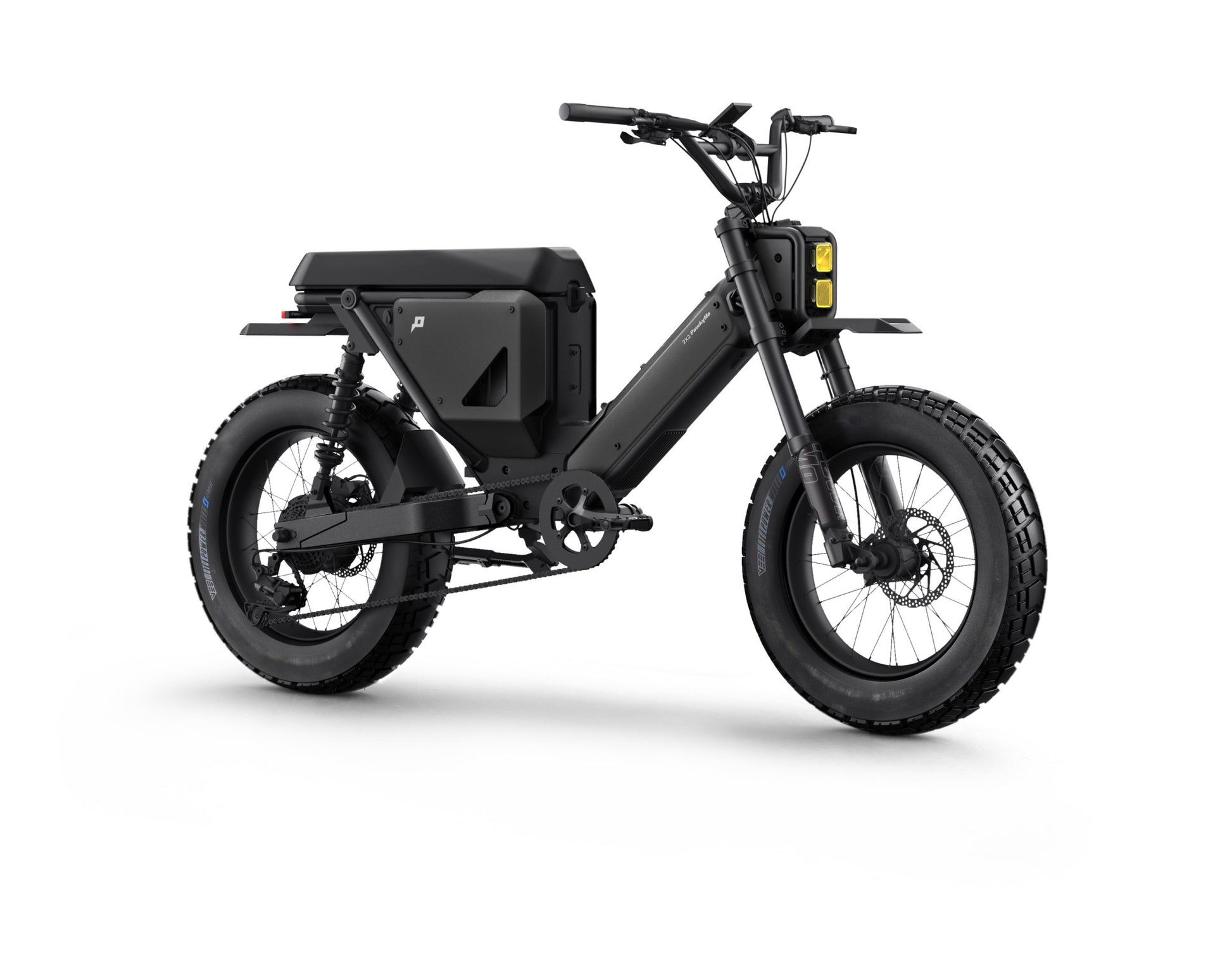

AR50 2X2

2000W Dual motors,2400Wh Dual batteries,Full adjustable suspensions,TFT Display,30+ Mounting Points.

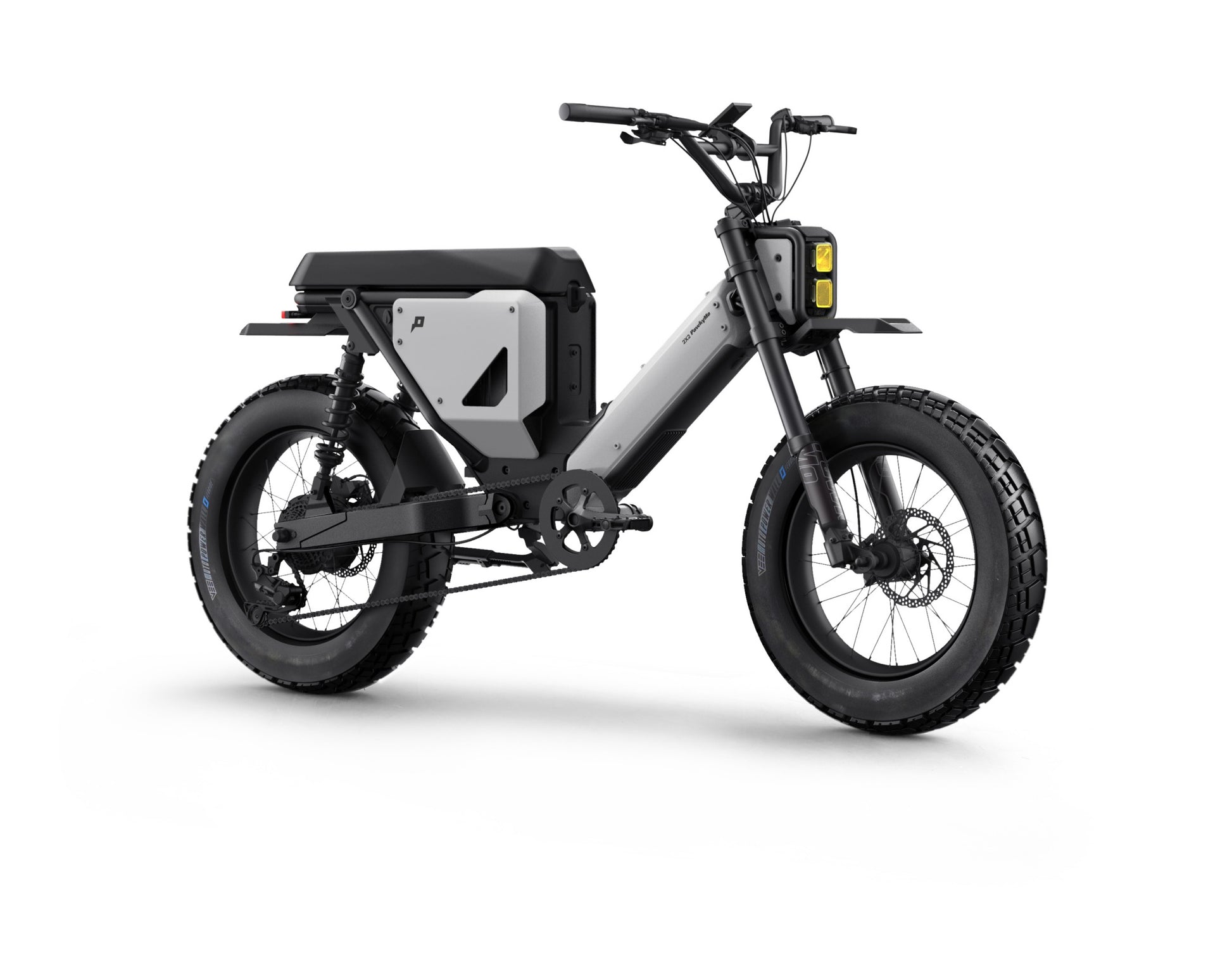

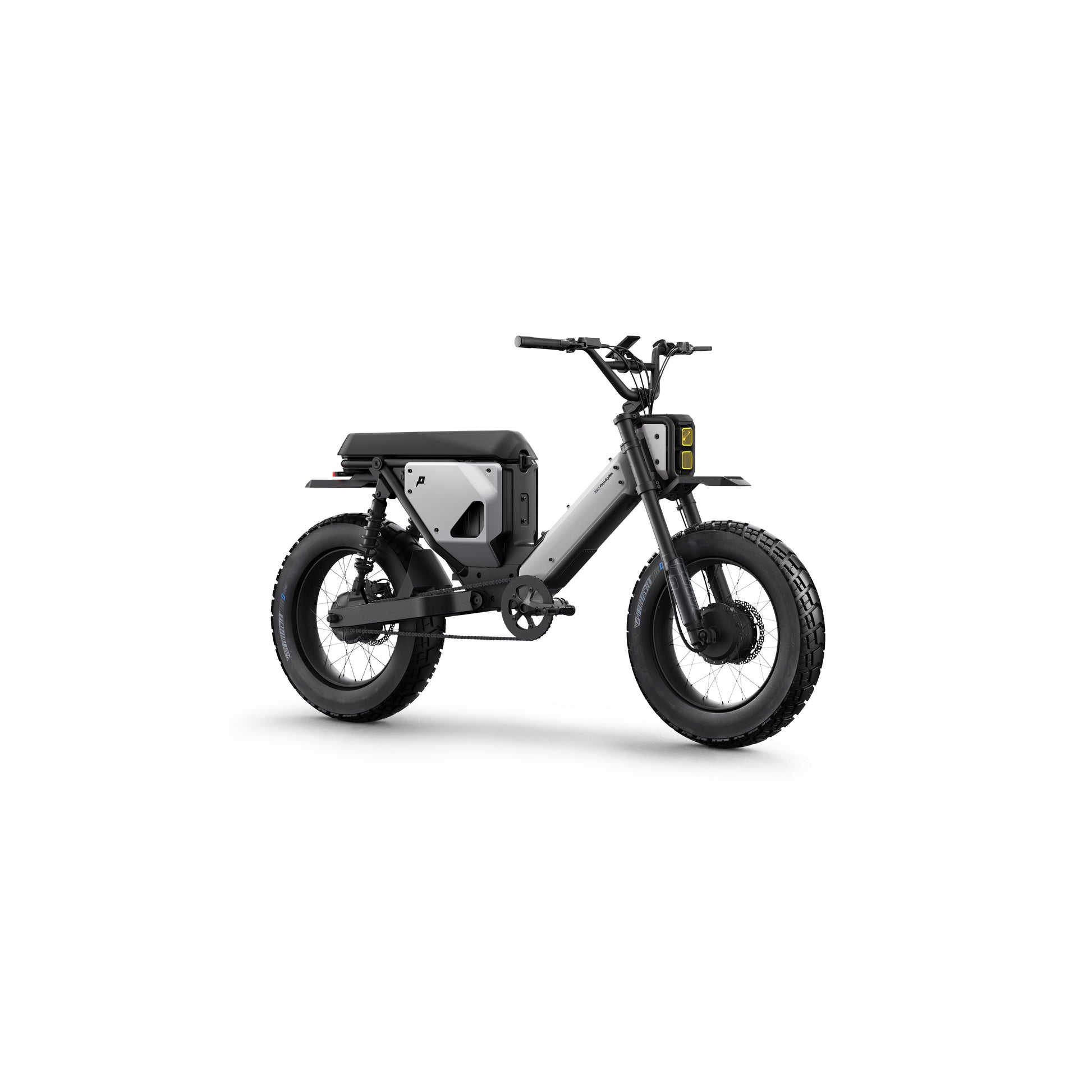

FOG WHITE

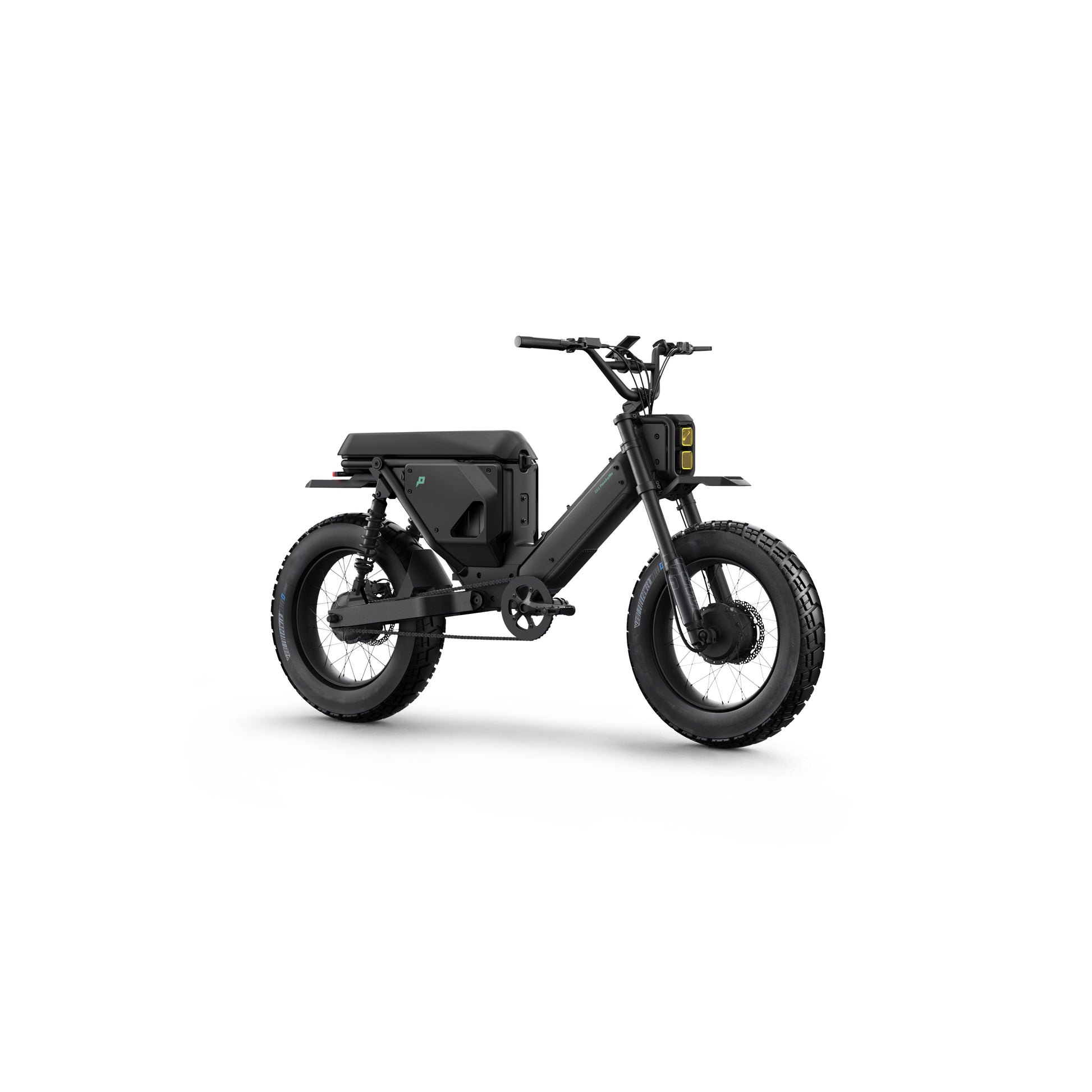

STORM BLACK

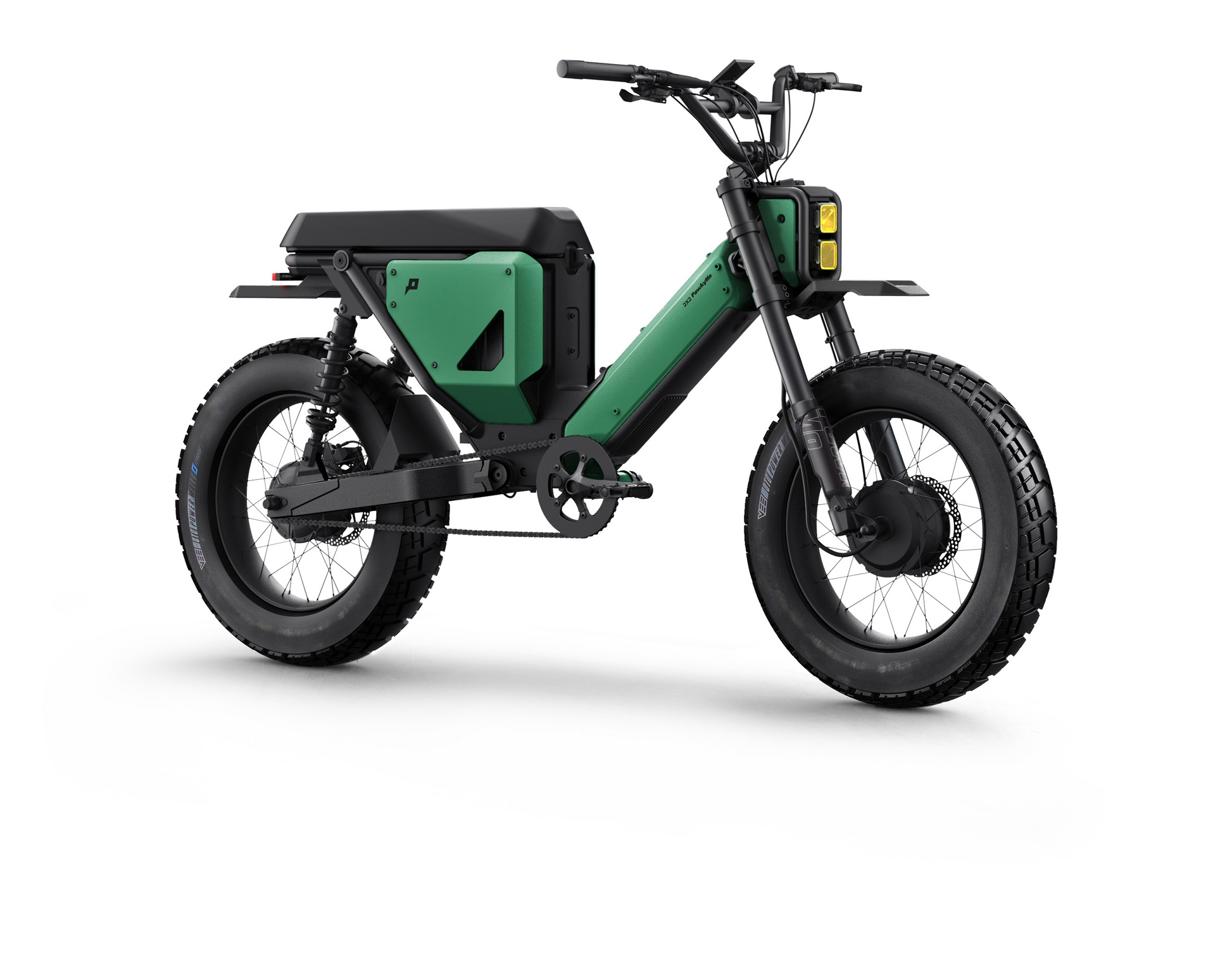

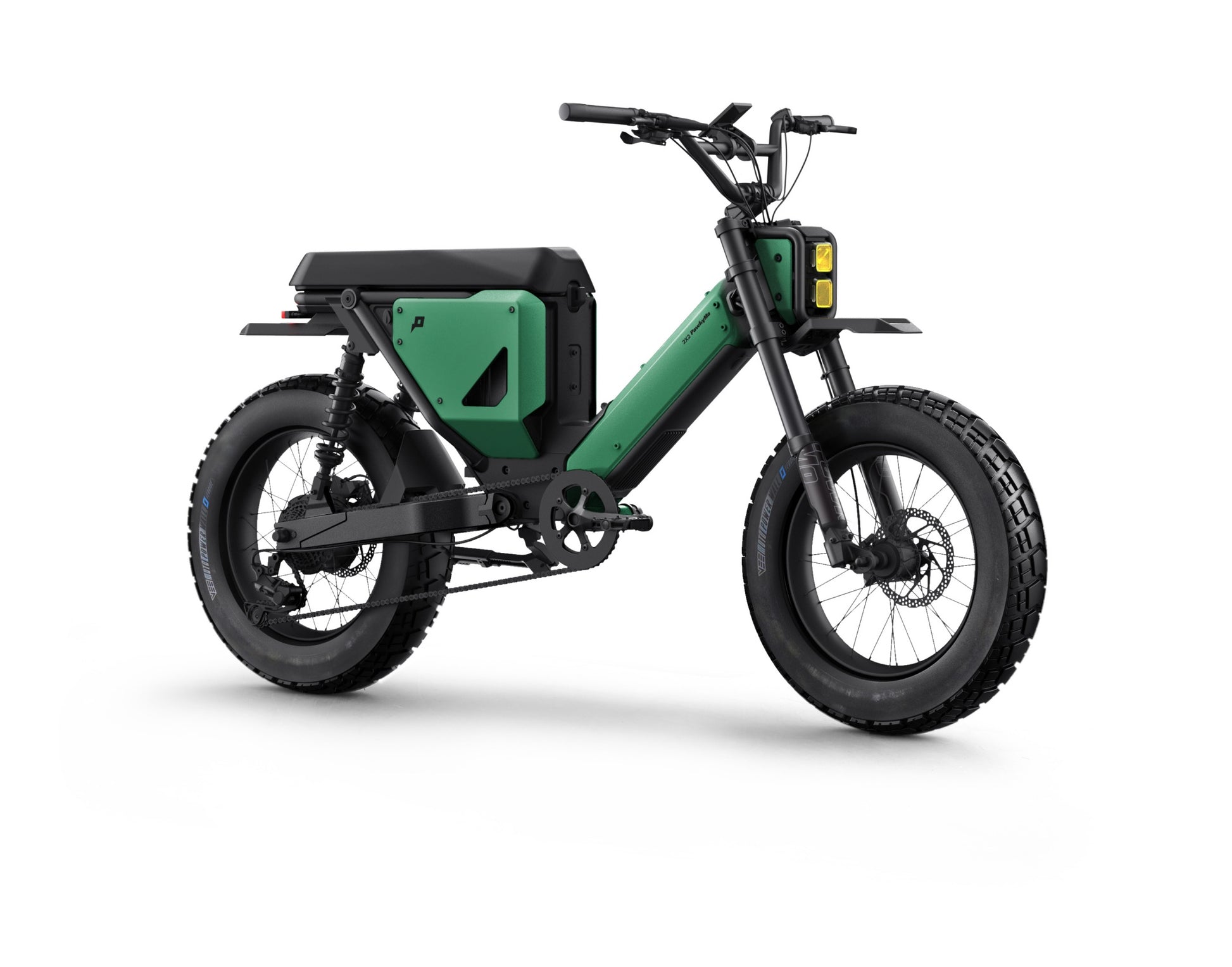

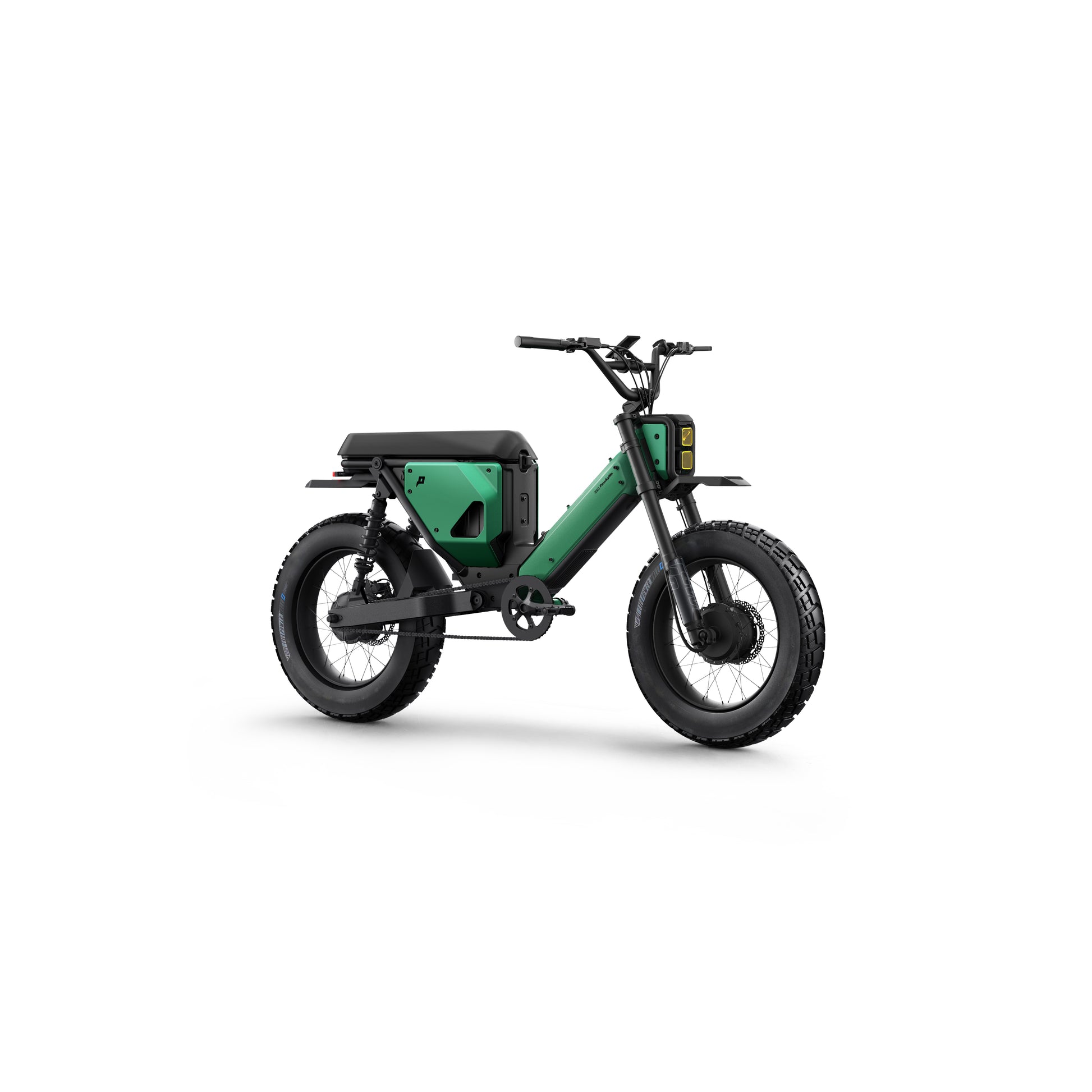

JUNGLE GREEN

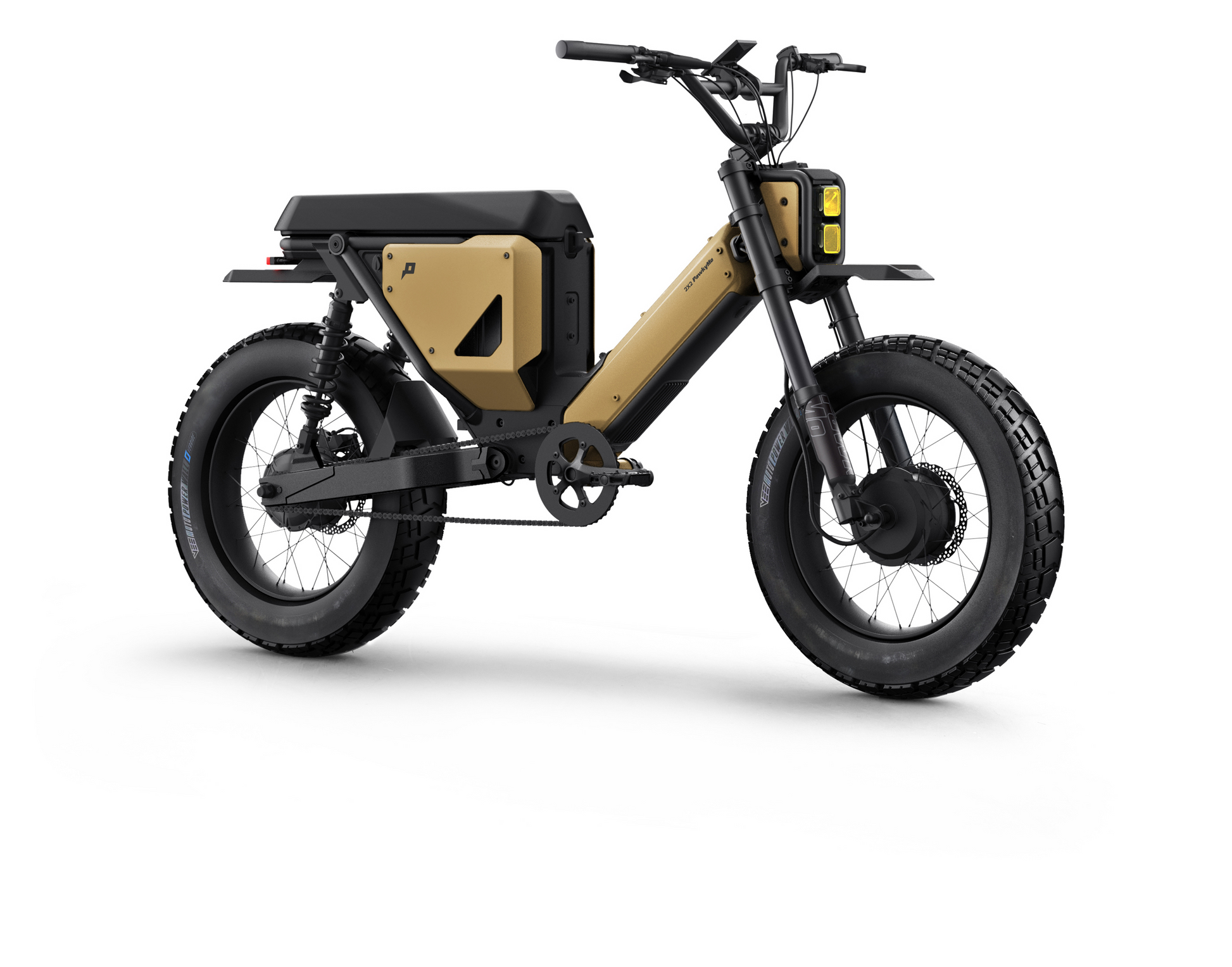

DESERT YELLOW
Regular price $4,199.00
Sale price $4,199.00 Regular price
Unit price

Dual-Motor System

Equipped with two high-performance BAFANG motors, the system allows switching between single and dual drive, as well as front- or rear-wheel drive, providing greater adaptability for challenging terrains.

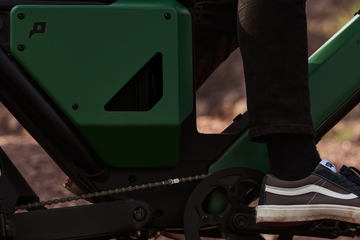

Dual-Battery System

Twin LG21700 lithium batteries paired with dual FOC vector controllers ensure efficient power delivery and instant responsiveness in every drive mode.

Battery Protection System

Each battery pack has a custom BMS with 12 safety protections for comprehensive power-system security.

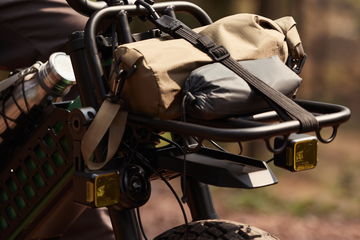

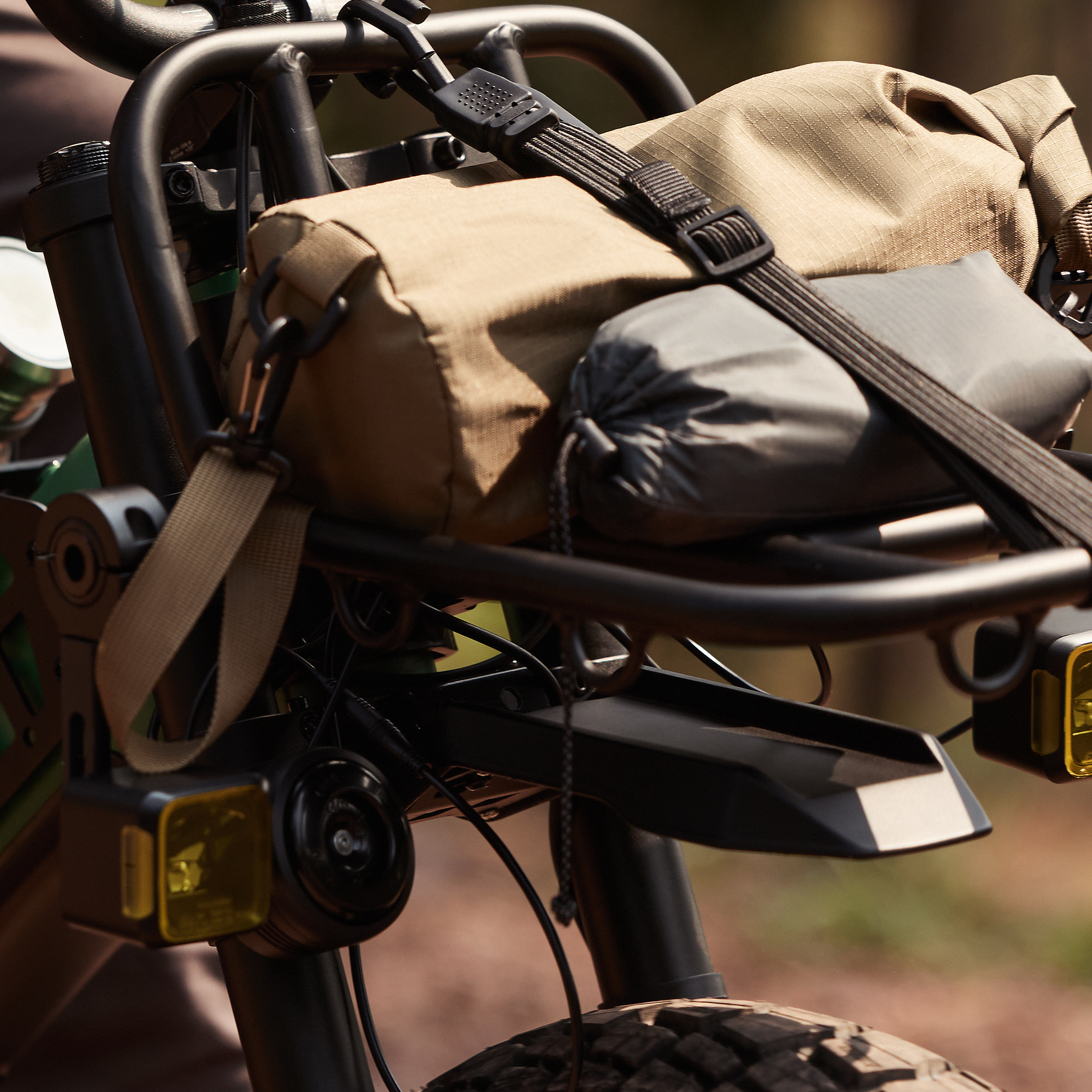

30+ Mounting Points

With up to 30 external mounting points, the vehicle is built for maximum customization and cargo flexibility. We've also prepared a range of external kits to match your needs.

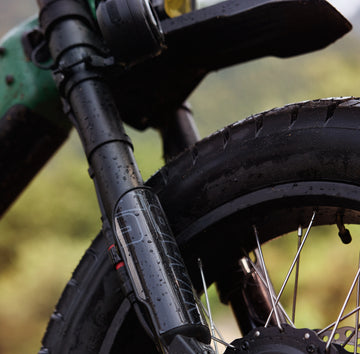

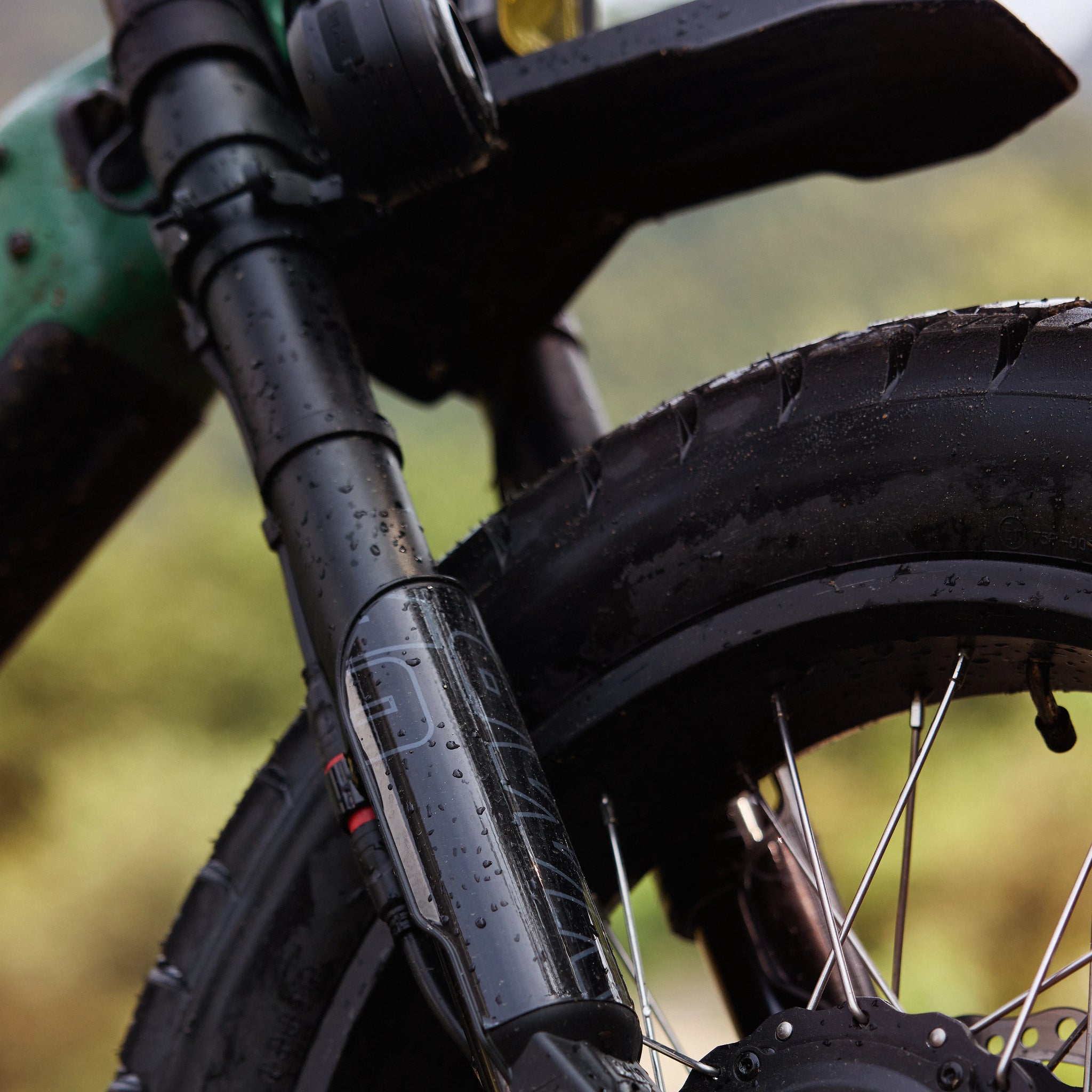

All-Around Suspension

Front and rear suspension fully adjustable; the front uses KKE motorcycle-grade adjustable hydraulic shocks.

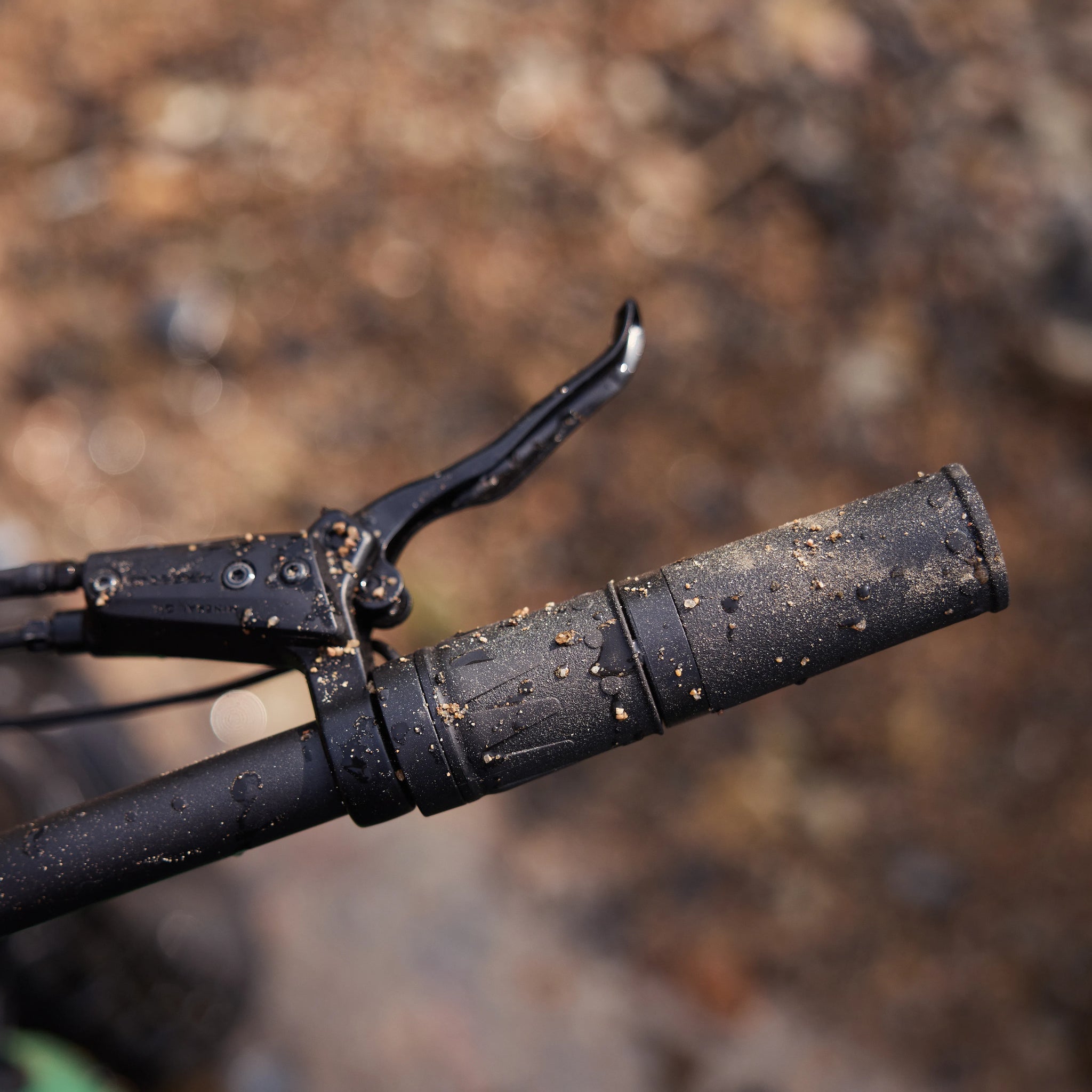

Hydraulic Brakes

Equipped with KKE motorcycle-grade hydraulic disc brakes and 203 mm thickened rotors for more effective dual-drive braking.

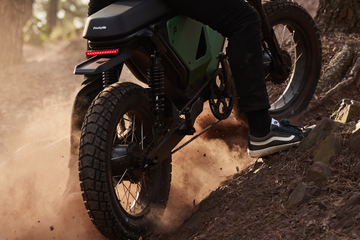

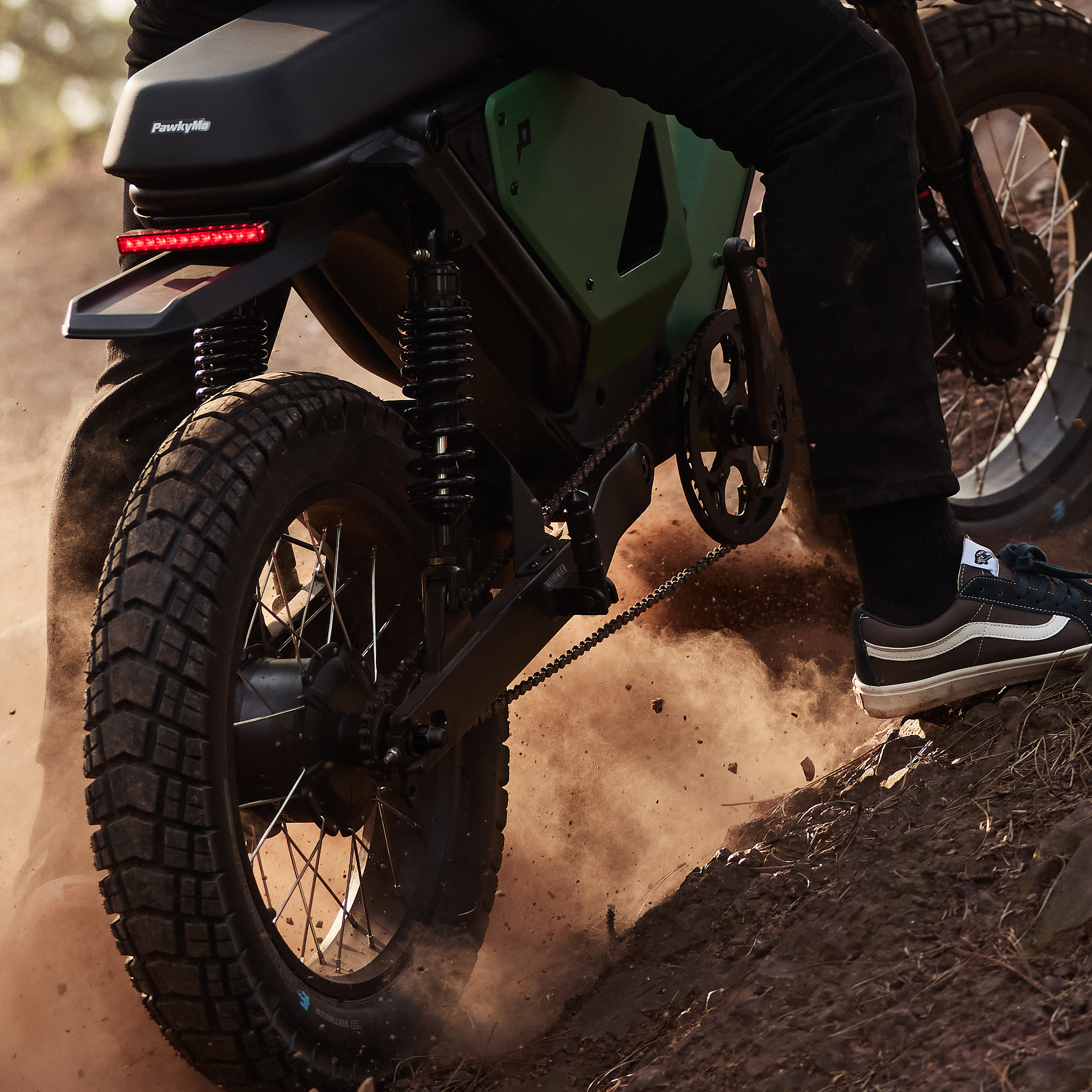

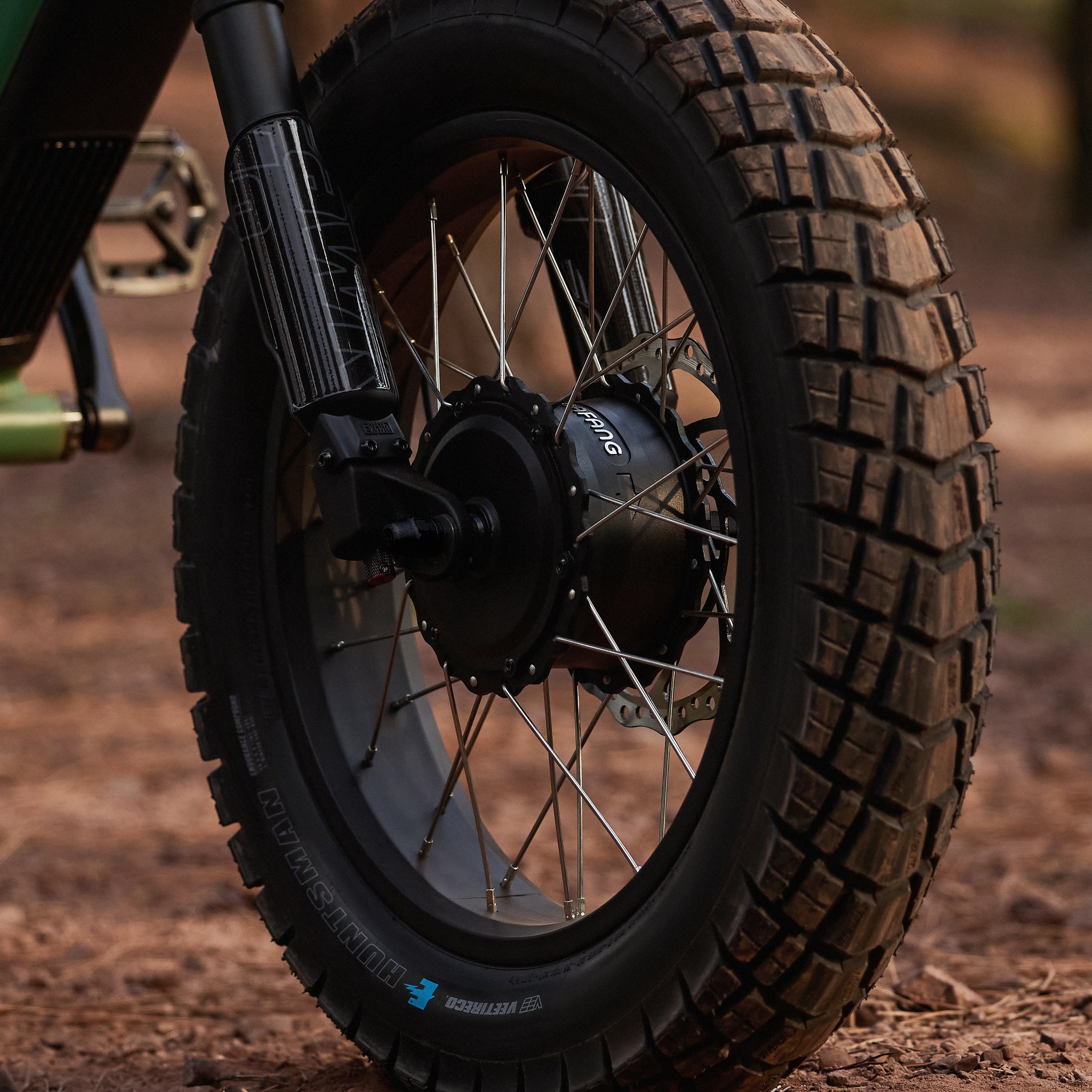

Tire Performance

Dual-purpose off-road tires compatible with both motorcycles and e-bikes, featuring triple-puncture protection built to conquer any terrain.

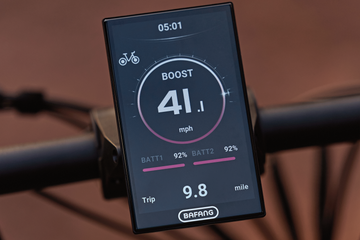

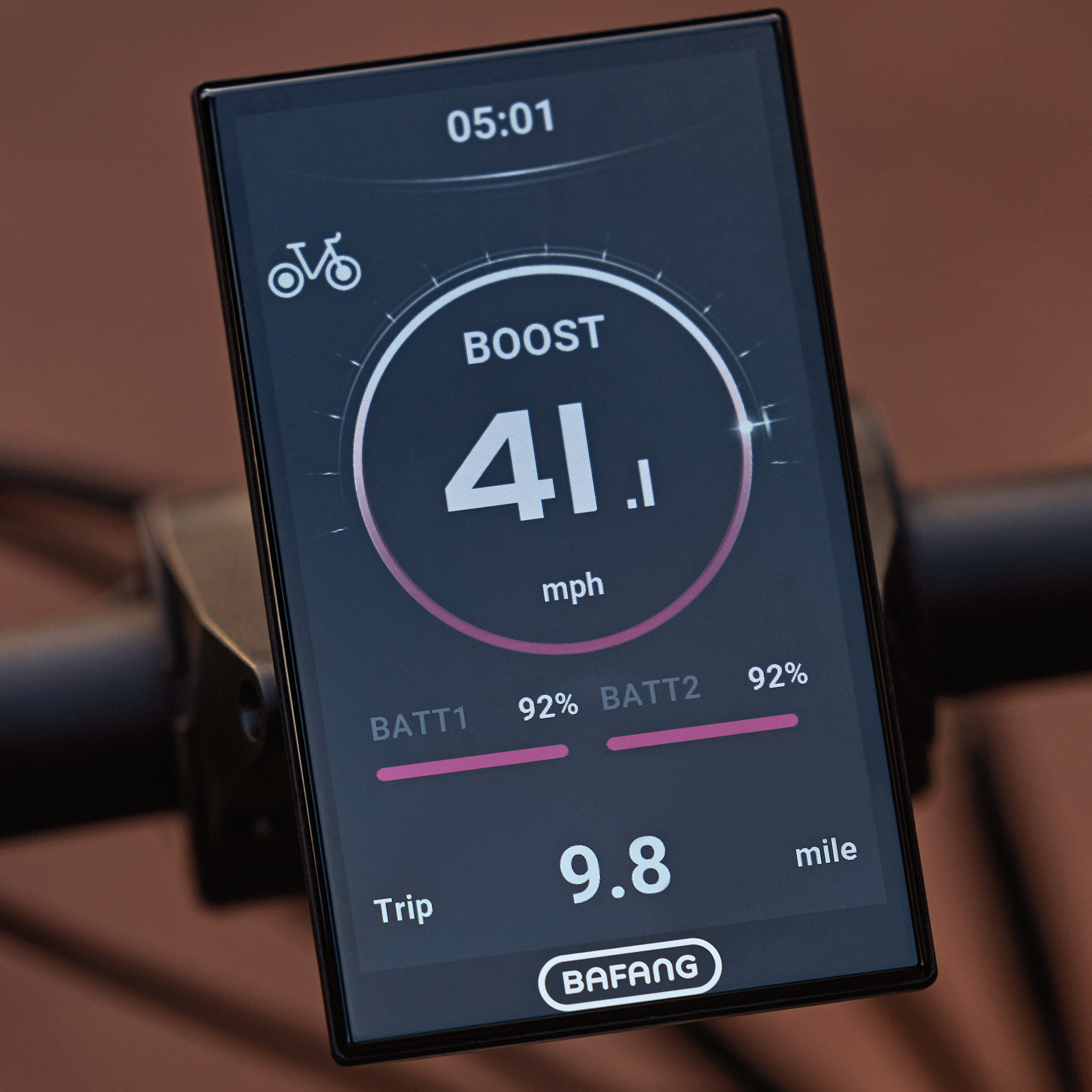

4.6" TFT Smart Display

The 4.6-inch TFT LCD provides a clear and intuitive interface, supporting Bluetooth, OTA updates, navigation, calorie tracking, customizable themes, and comes with a built-in charging port.

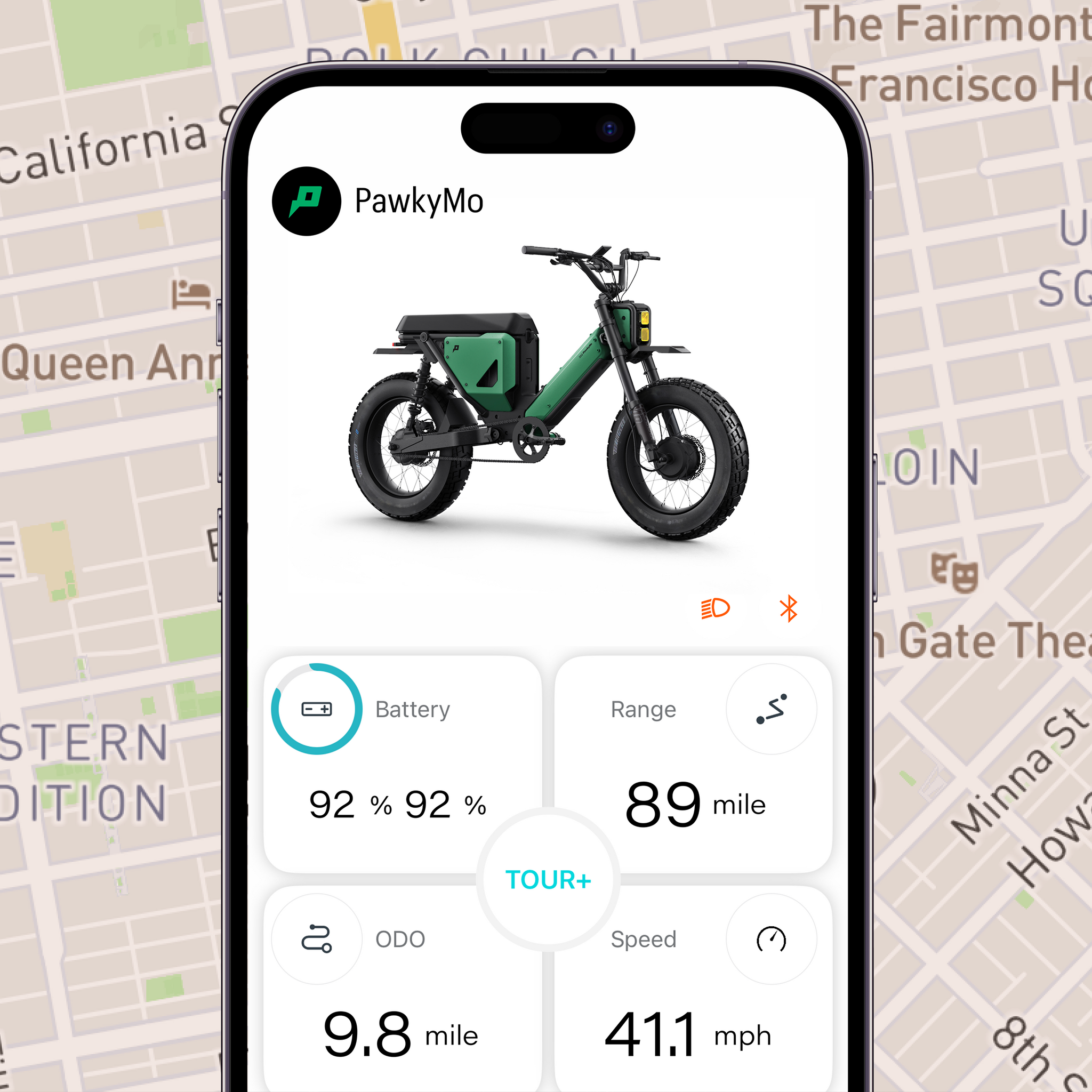

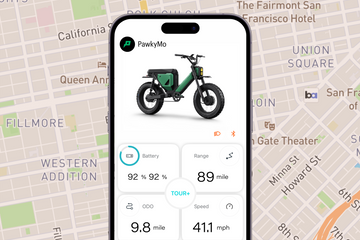

App Functionality

Control your bike via smartphone—custom riding modes, navigation projection, ride data recording, and more.

SPECIFICATIONS

/ AR50

TOP SPEED
40mph
MAX RANGE
64mi
ALL-WHEEL DRIVE
AWD
MOUNTING POINTS
30+
MAX PAYLOAD
330lbs

PERFORMANCE

+

Top Speed : 37 MPH
Range : 64miles (throttle-only / 31mph)
*The data is sourced from the test results of Bafang Laboratory
Battery : 2400Wh(21700 lithium ion cells)
Motor : 2 X 1kw nominal
Throttle : Thumb Throttle
Gearing & Rear Derailleur : single
Charge Time : 8.5 hrs

FRAME

+

Frame : Aluminum
Mouting Point : 30+
Adjustable Suspensions : Full
Brakes : Hydraulic / 4 Piston Calipers
Tires : 4.0" Front / 4.3" Rear

DIMENSIONS

+

Vehicle Weight : 143lbs
Length x Width x Height : 68" x 28.5" x 43.5"
Rider Weight Limit : 330lbs
Seat Height : 34"

DISPLAY & APP

+

4.6in TFT / Charging Output Port / Calorie
Bluetooth / Navigation / OTA / App control

SAFETY

+

Battery Protection : Full BMS(battery management system) Protections

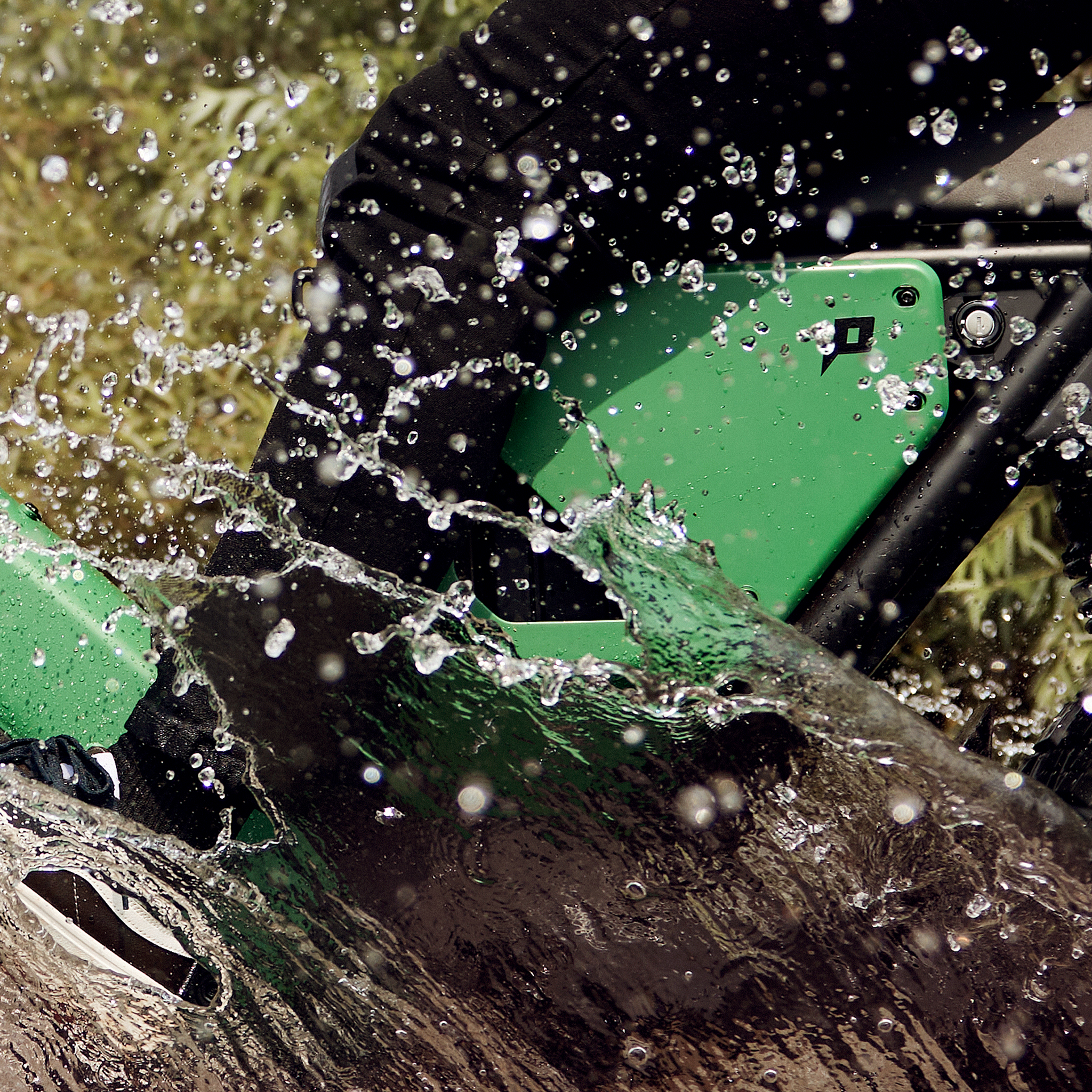

Waterproof Rate:IPX65-IPX67

WARRANTY

+

Motor:24month
Battery:48month
controller:12month
Chager:12month
Display:12month
Function Switch:12month
Frame:12month
Out tire & Inner tire : 30days
Shock Absorbing Fork:12month
