AR20 adapts to your needs with style, range, and load upgrades—featuring a unique motorcycle look.

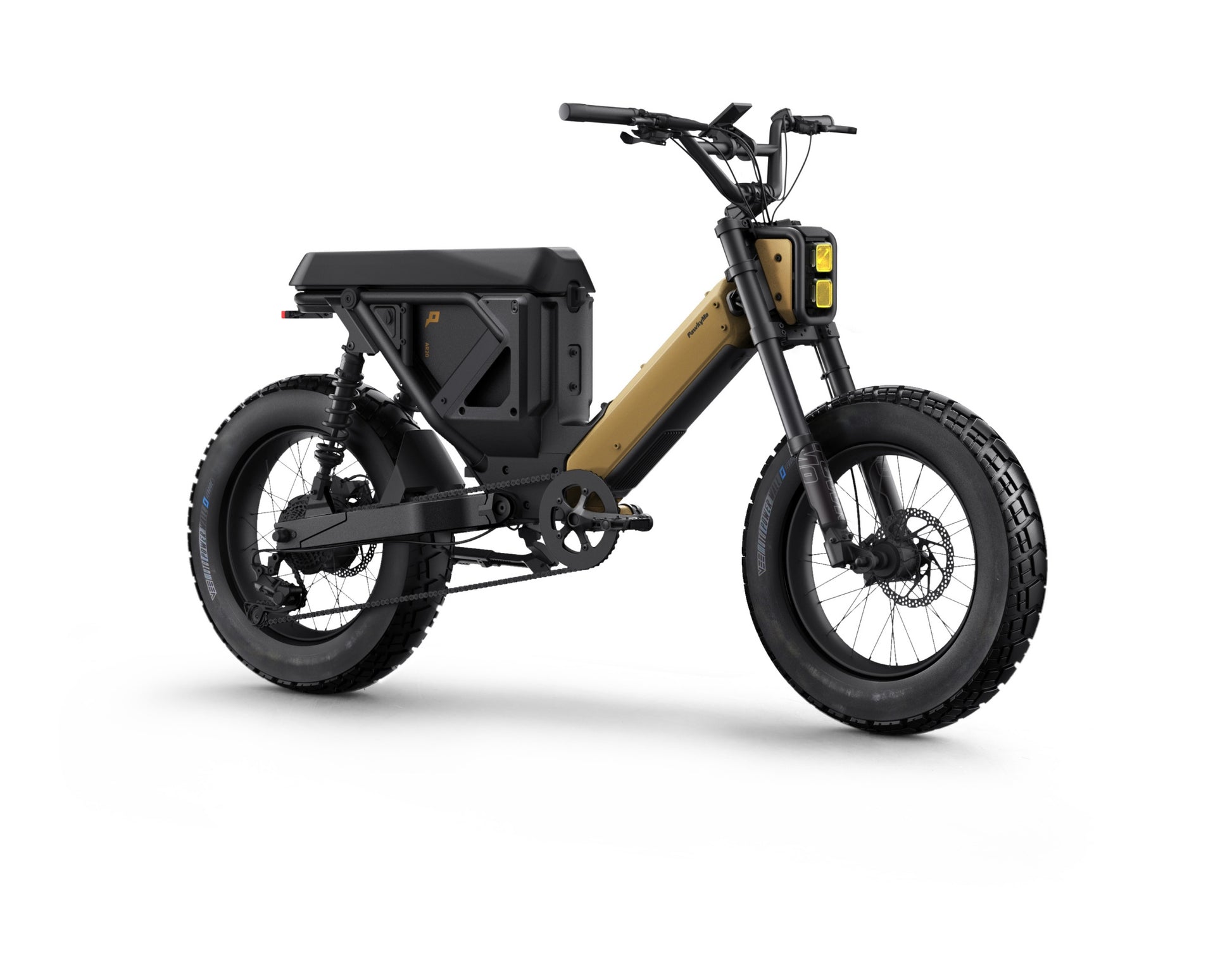

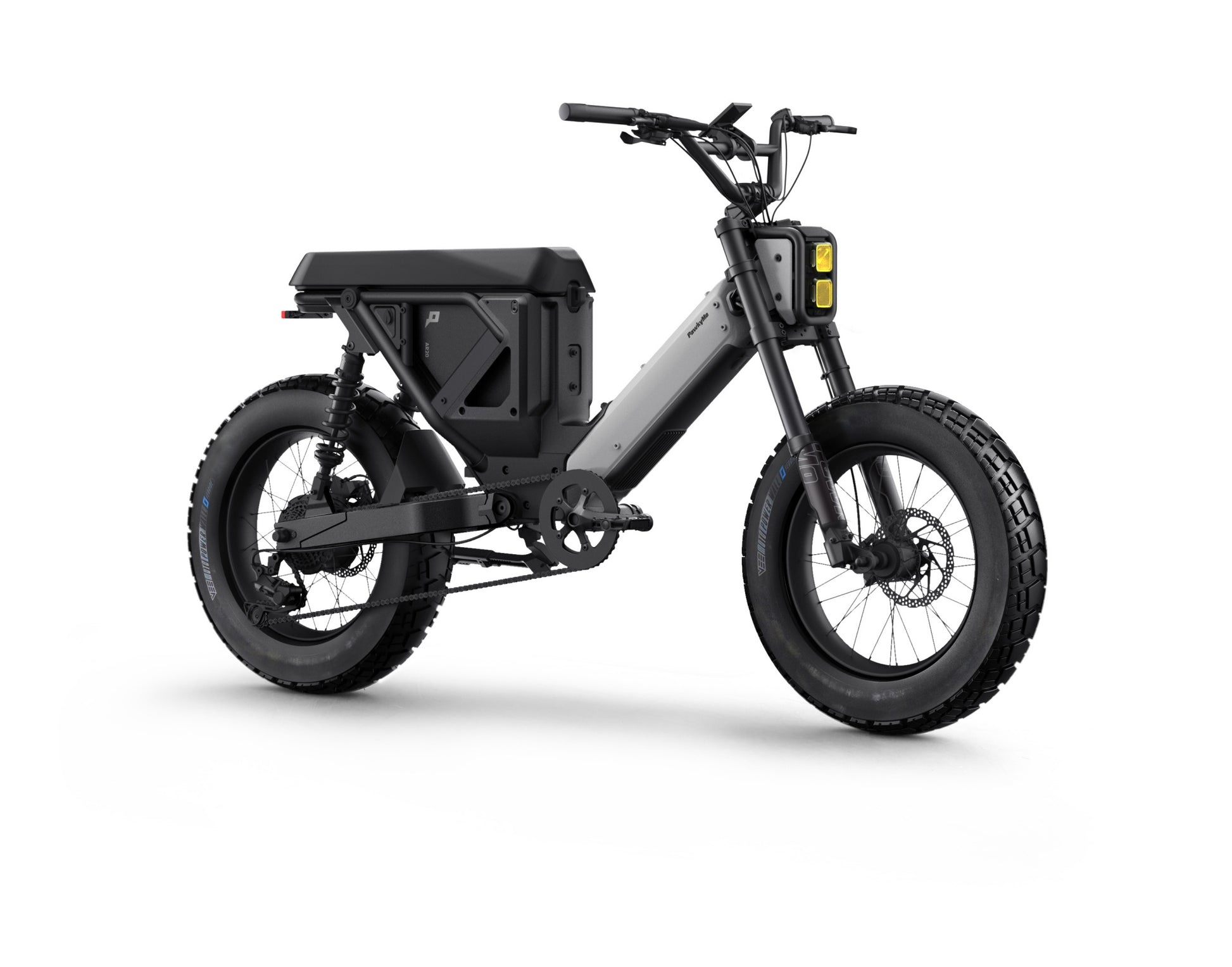

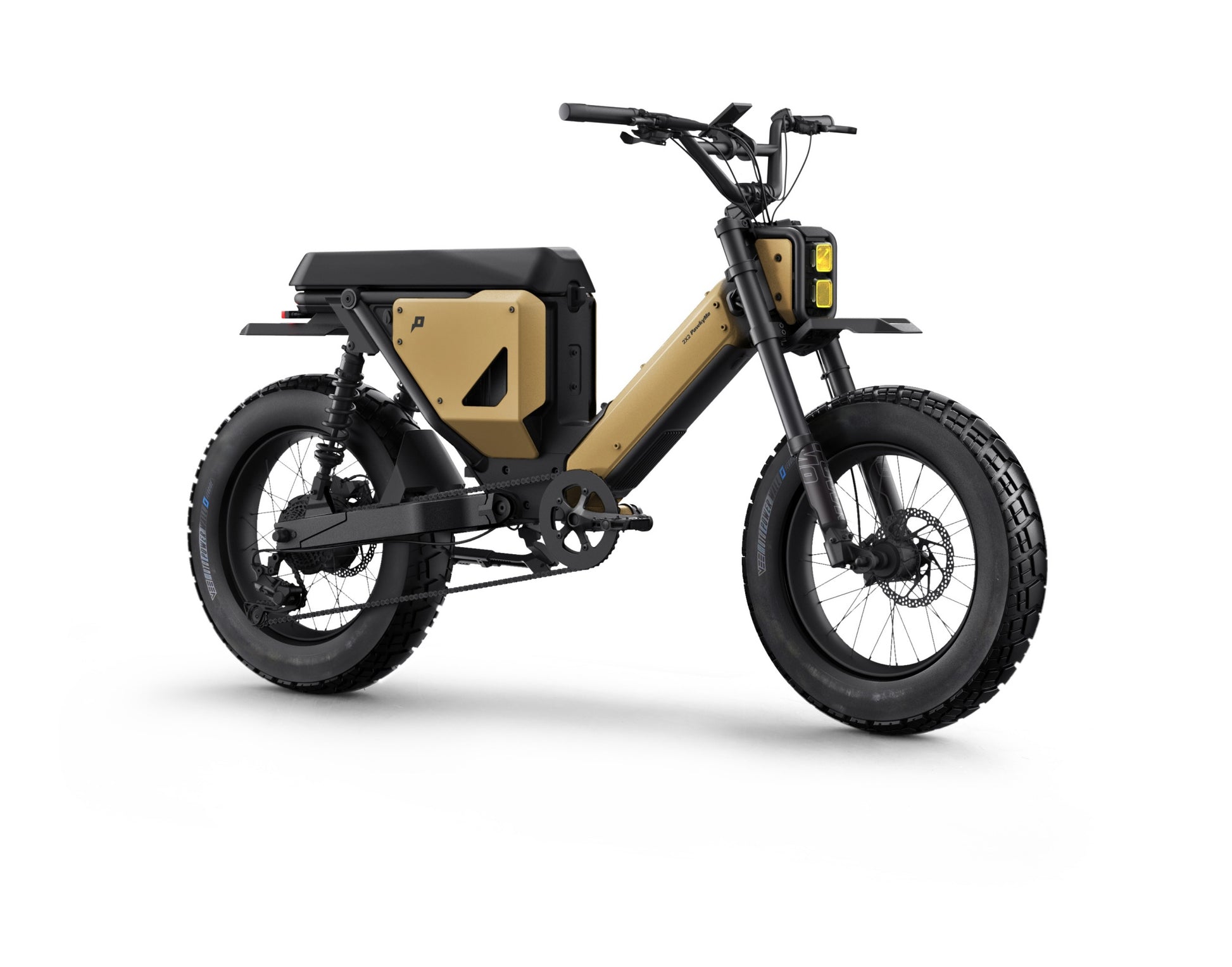

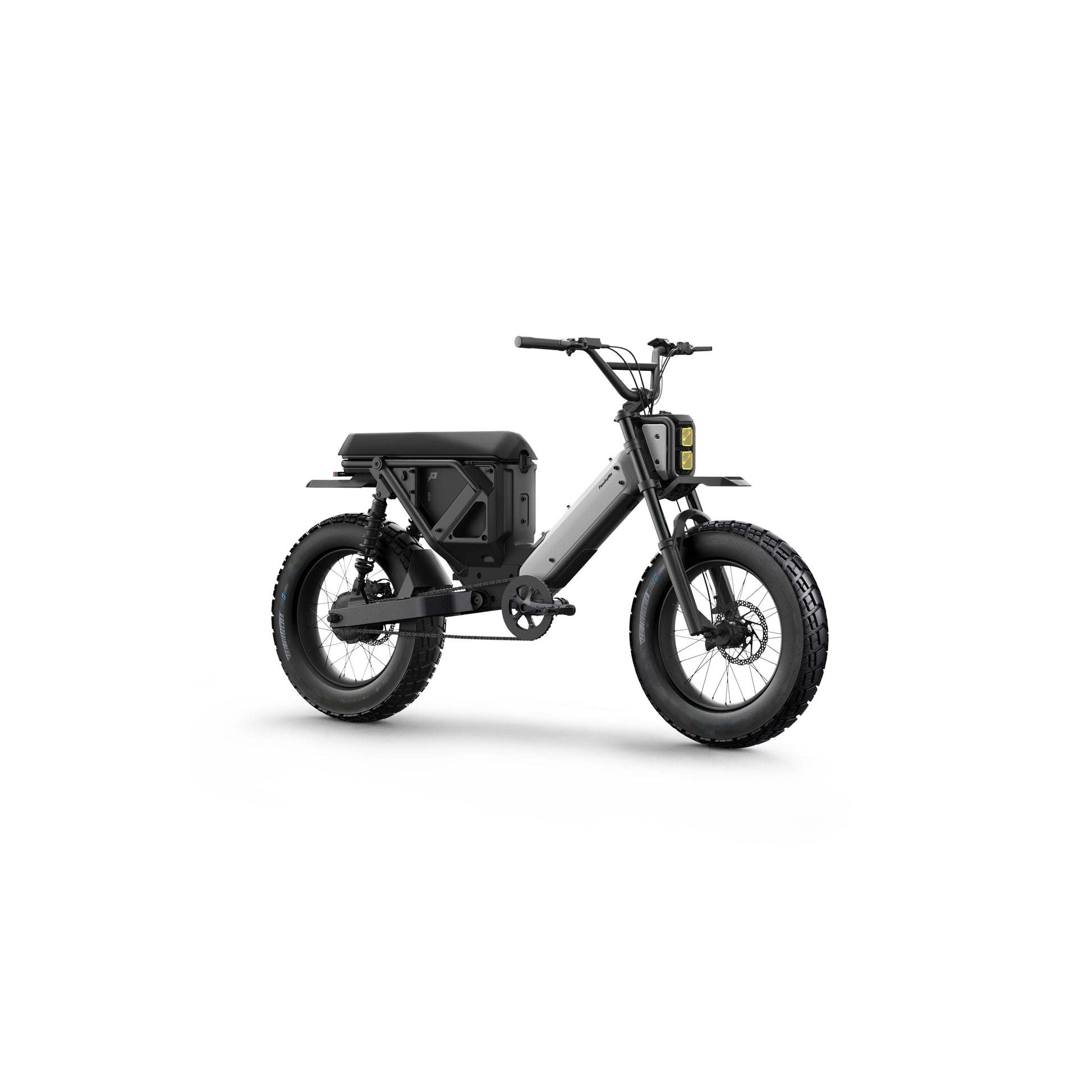

AR20

750W Rear Motor,960Wh Battery,Full adjustable suspensions,TFT Display,30+ Mounting Points,8.2L Seat bucket.

STORM BLACK
FOG WHITE

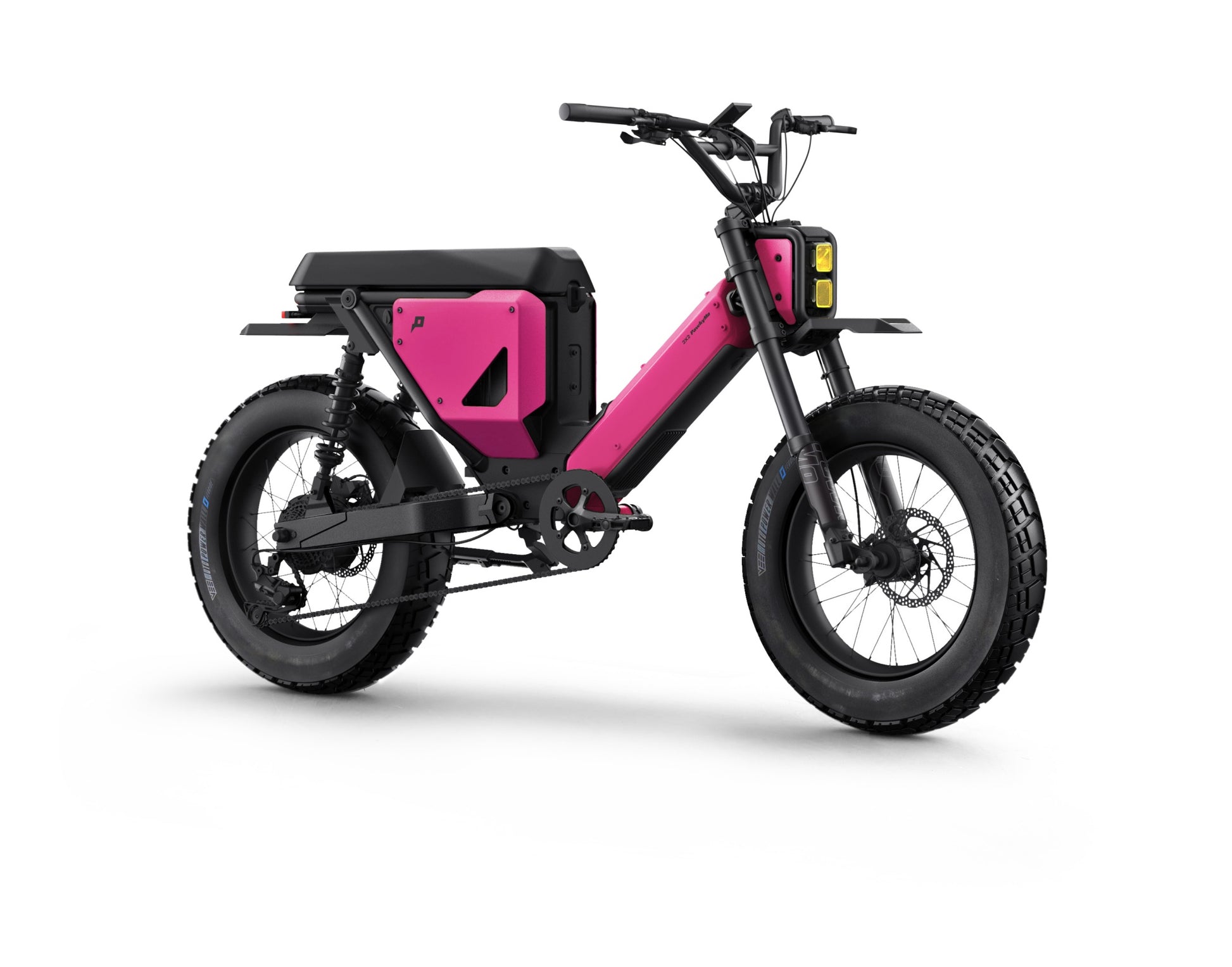

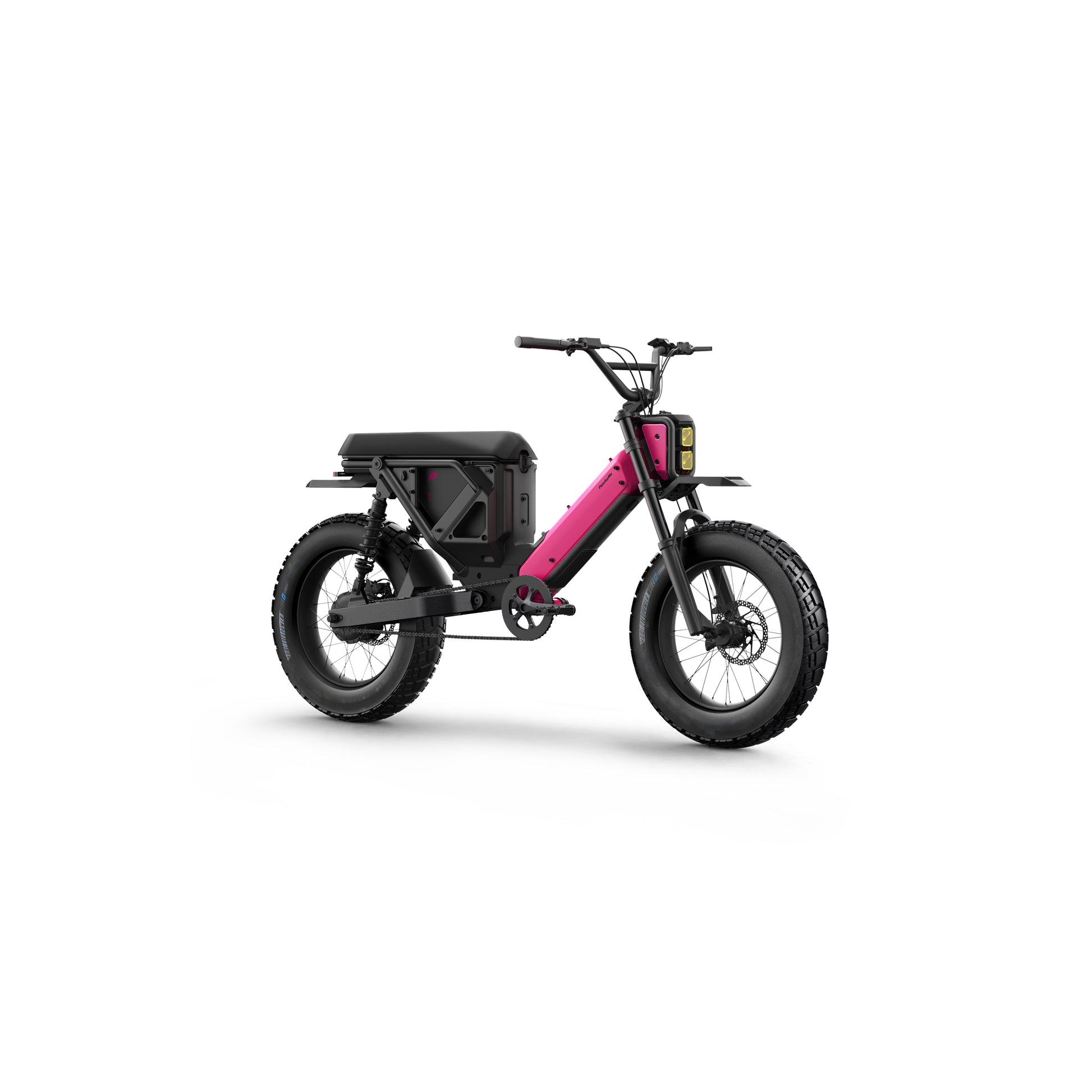

AURORA PINK
DESERT YELLOW
Regular price $2,999.00
Sale price $2,999.00 Regular price
Unit price
BUY IT NOW

Powerful Performance

The AR20 features a BAFANG high-performance motor paired with an LG 21700 ternary lithium battery. Tuned with a custom FOC vector controller, it delivers peak power up to 1300W for a smooth yet powerful riding experience.

Battery Protection System

The hidden battery paired with a custom battery protection system, featuring 12 comprehensive safety measures—designed to be both stylish and secure.

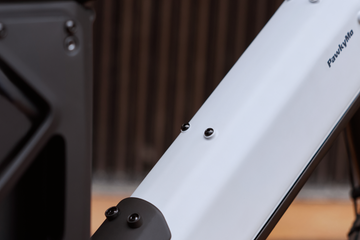

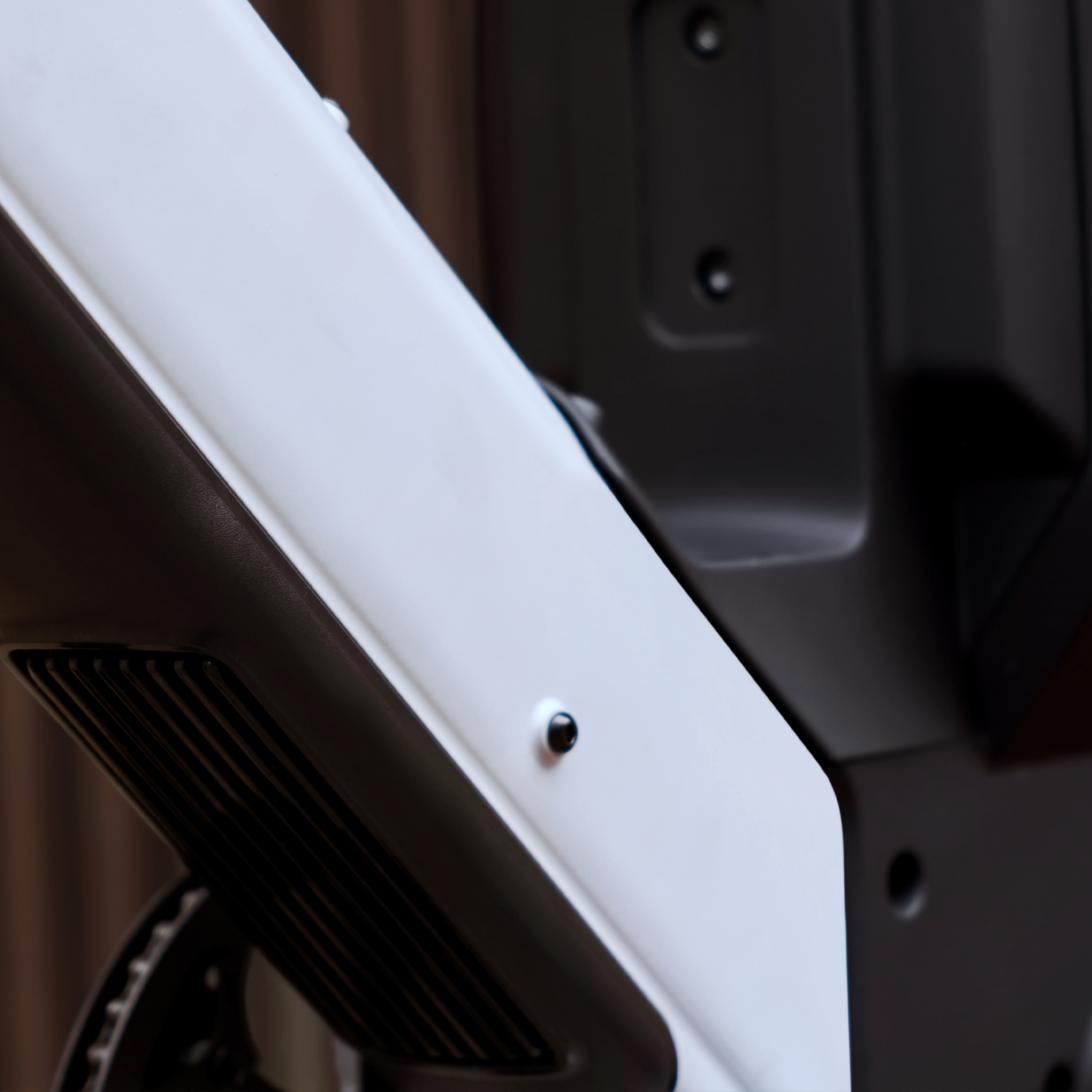

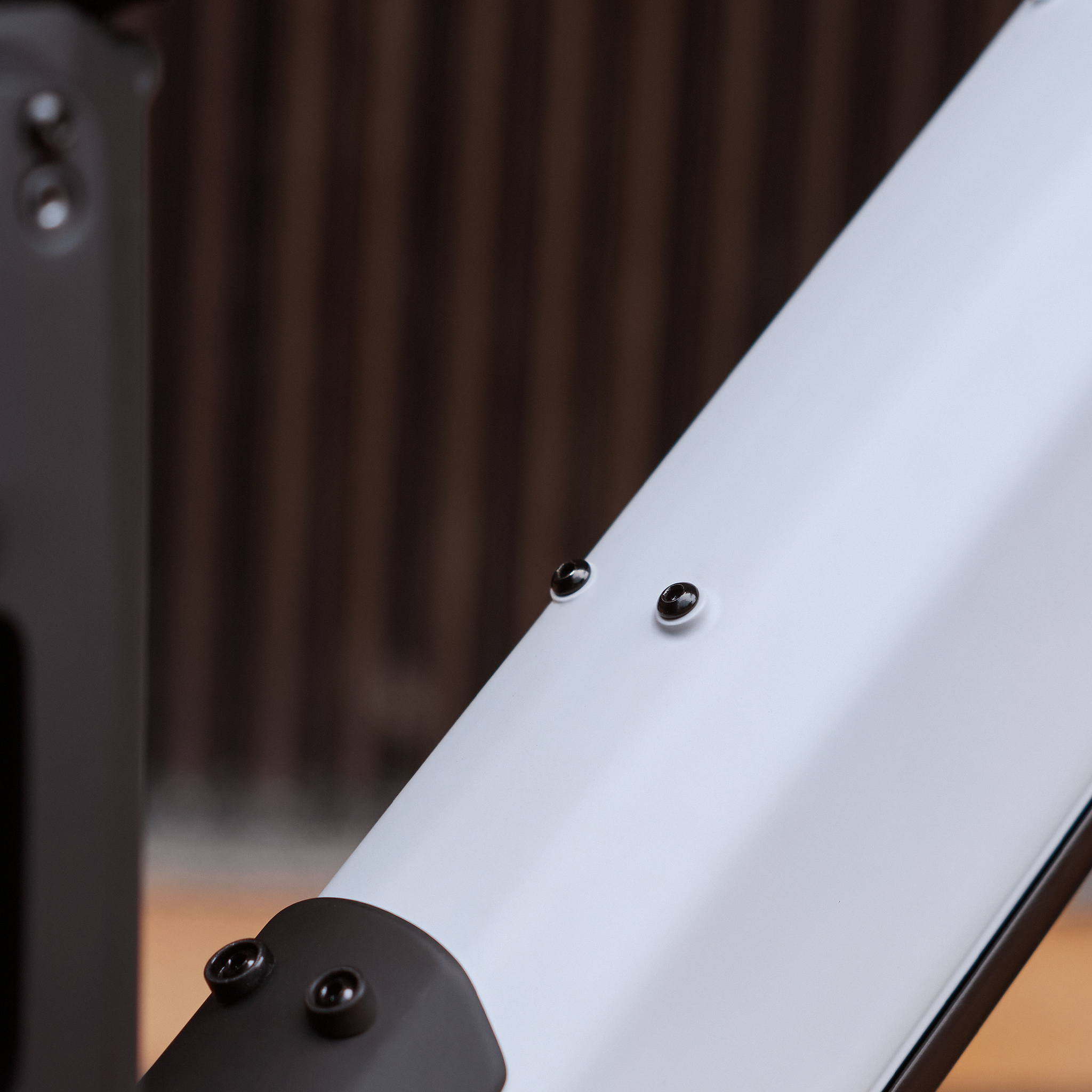

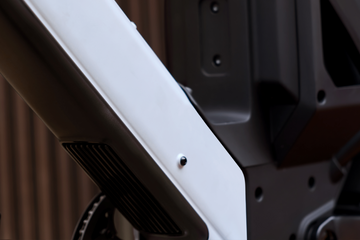

30+ Mounting Points

With up to 30 external mounting points, the vehicle is built for maximum customization and cargo flexibility. We've also prepared a range of external kits to match your needs.

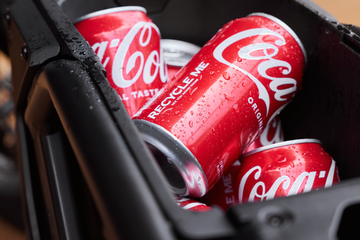

8.2L Seat Storage

Holds 10 bottles of Coca-Cola in a lockable 8.2L under-seat compartment.

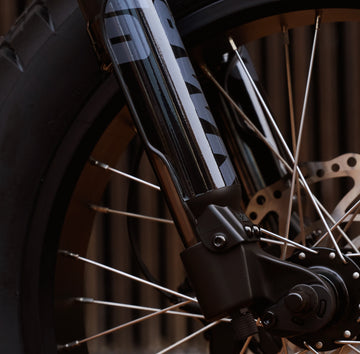

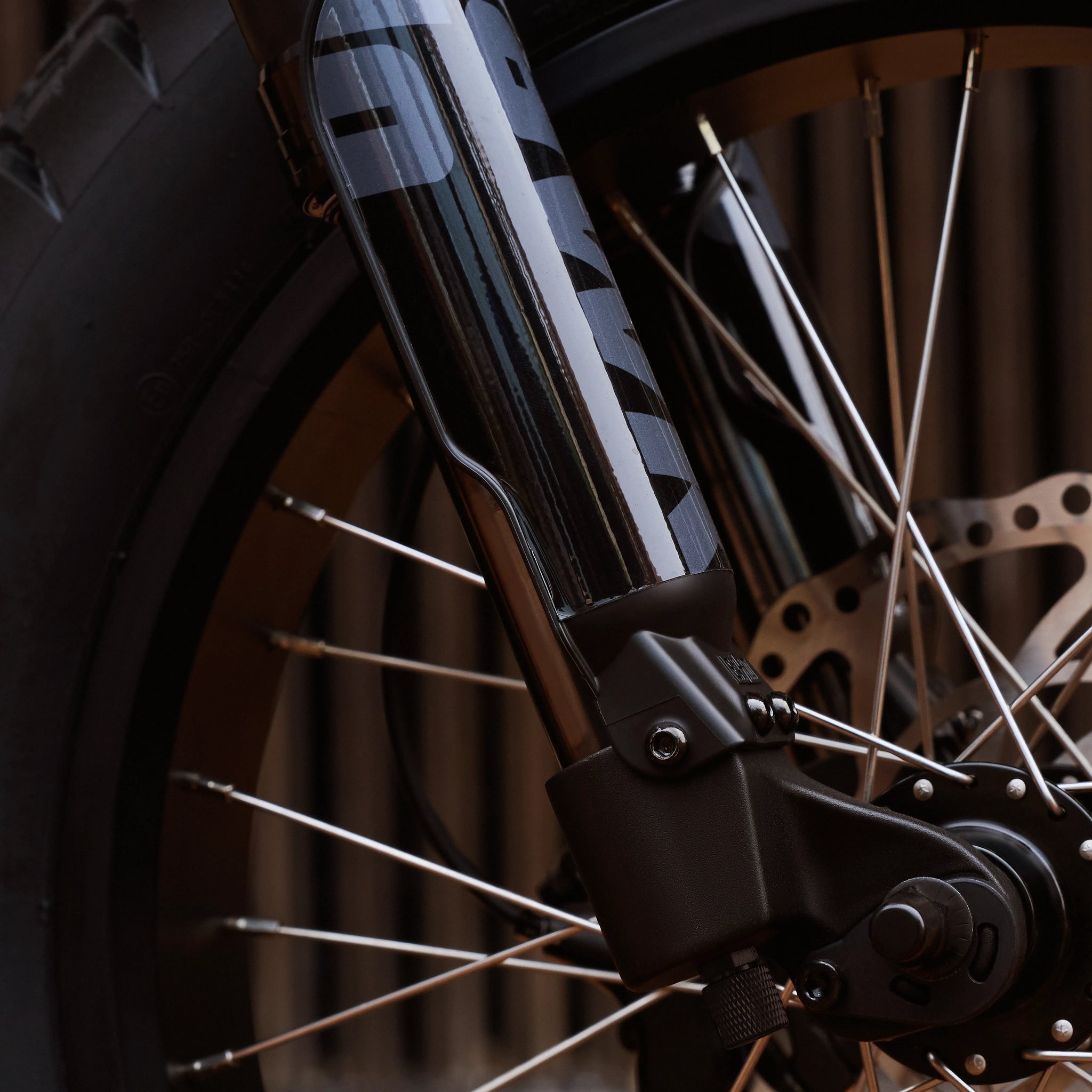

All-Around Suspension

Both front and rear shock absorbers are fully adjustable, with the front suspension matching the AR50’s KKE motorcycle-grade adjustable hydraulic dampers.

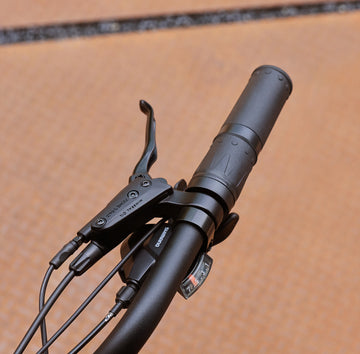

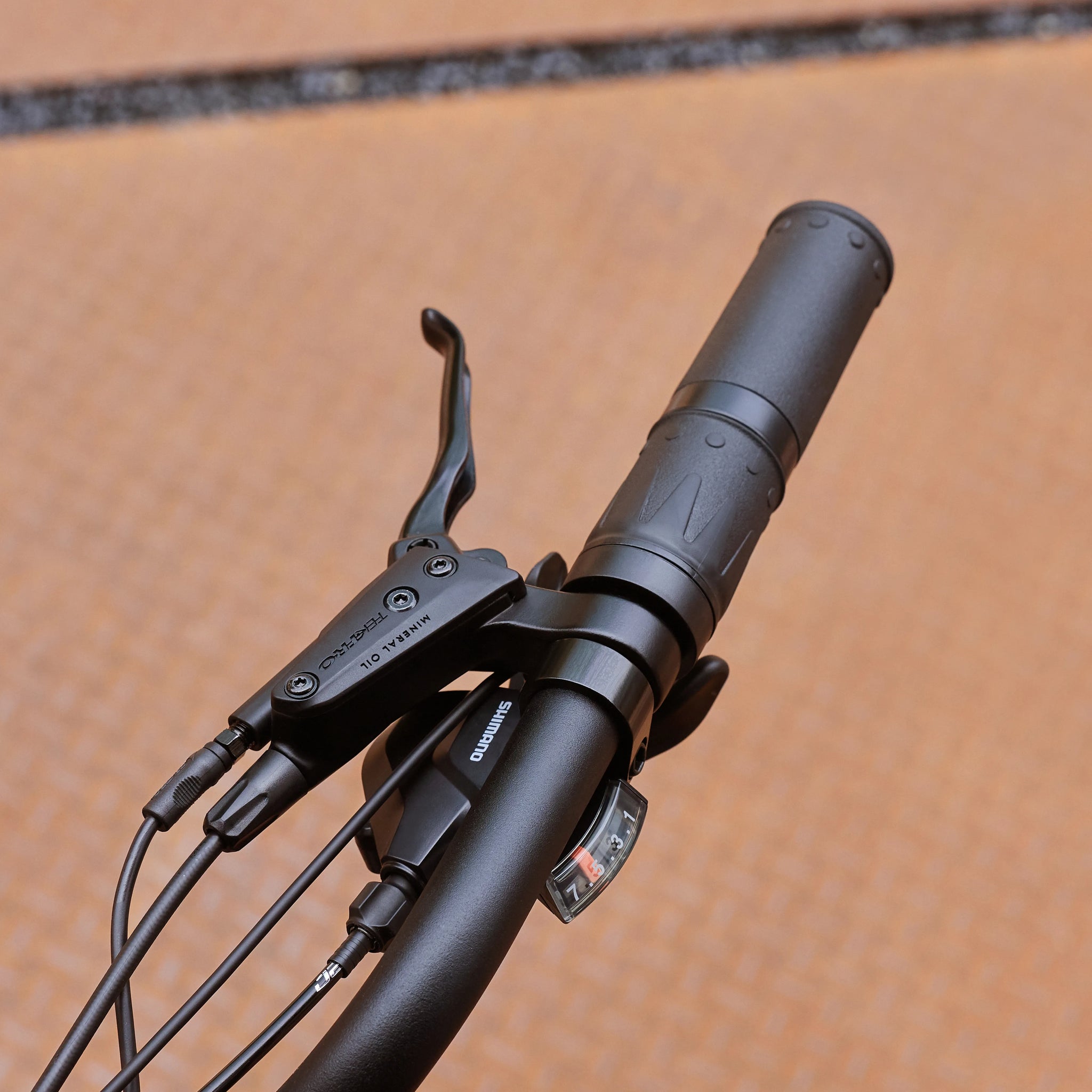

Hydraulic Brakes

Front and rear TEKTRO four-piston hydraulic disc brakes with 203 mm oversized rotors deliver superior stopping power and razor-sharp control.

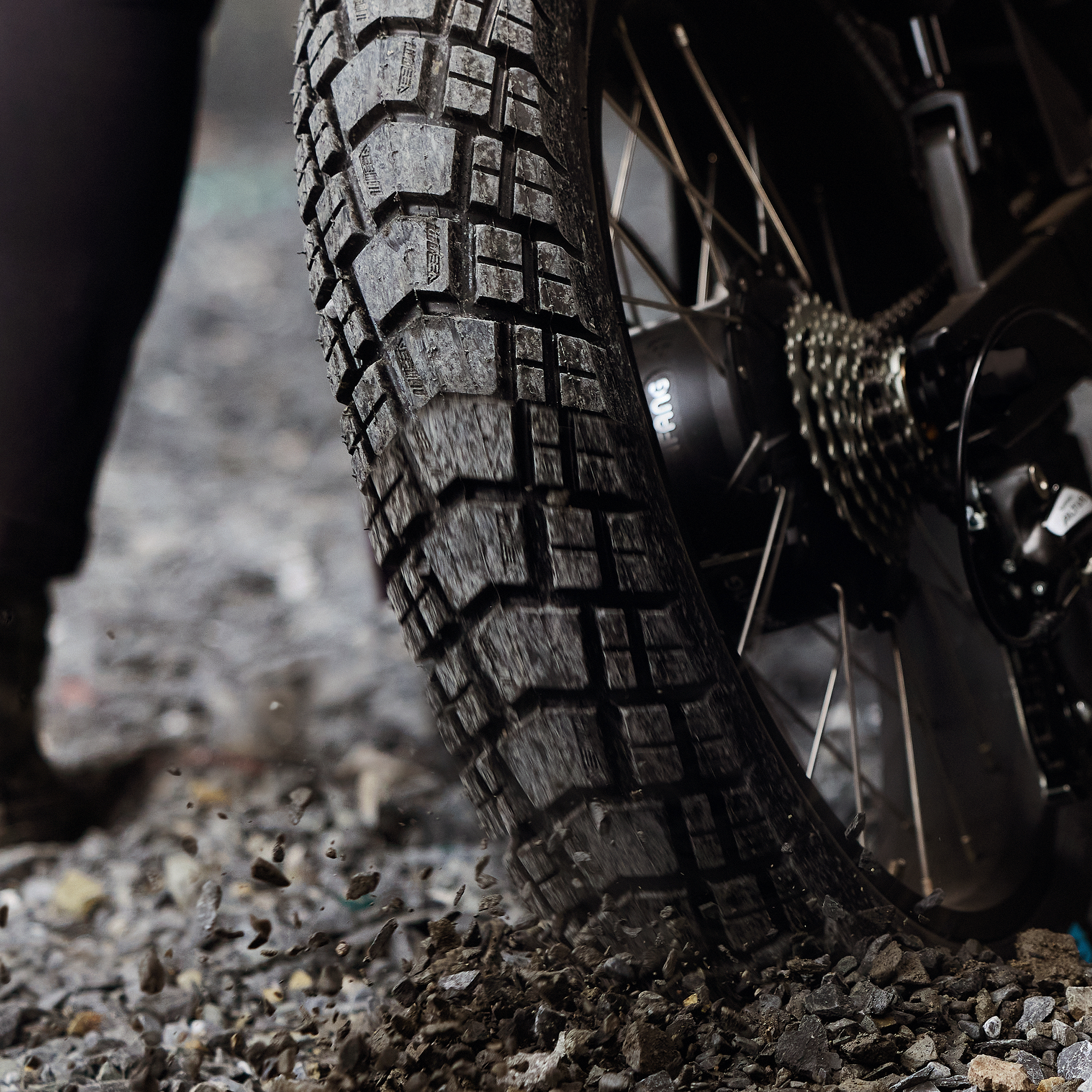

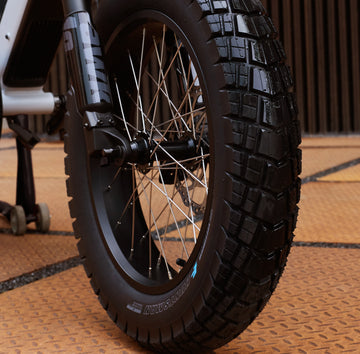

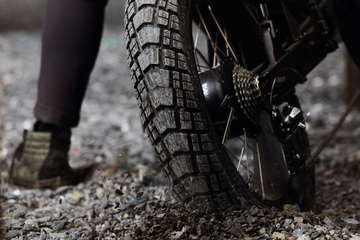

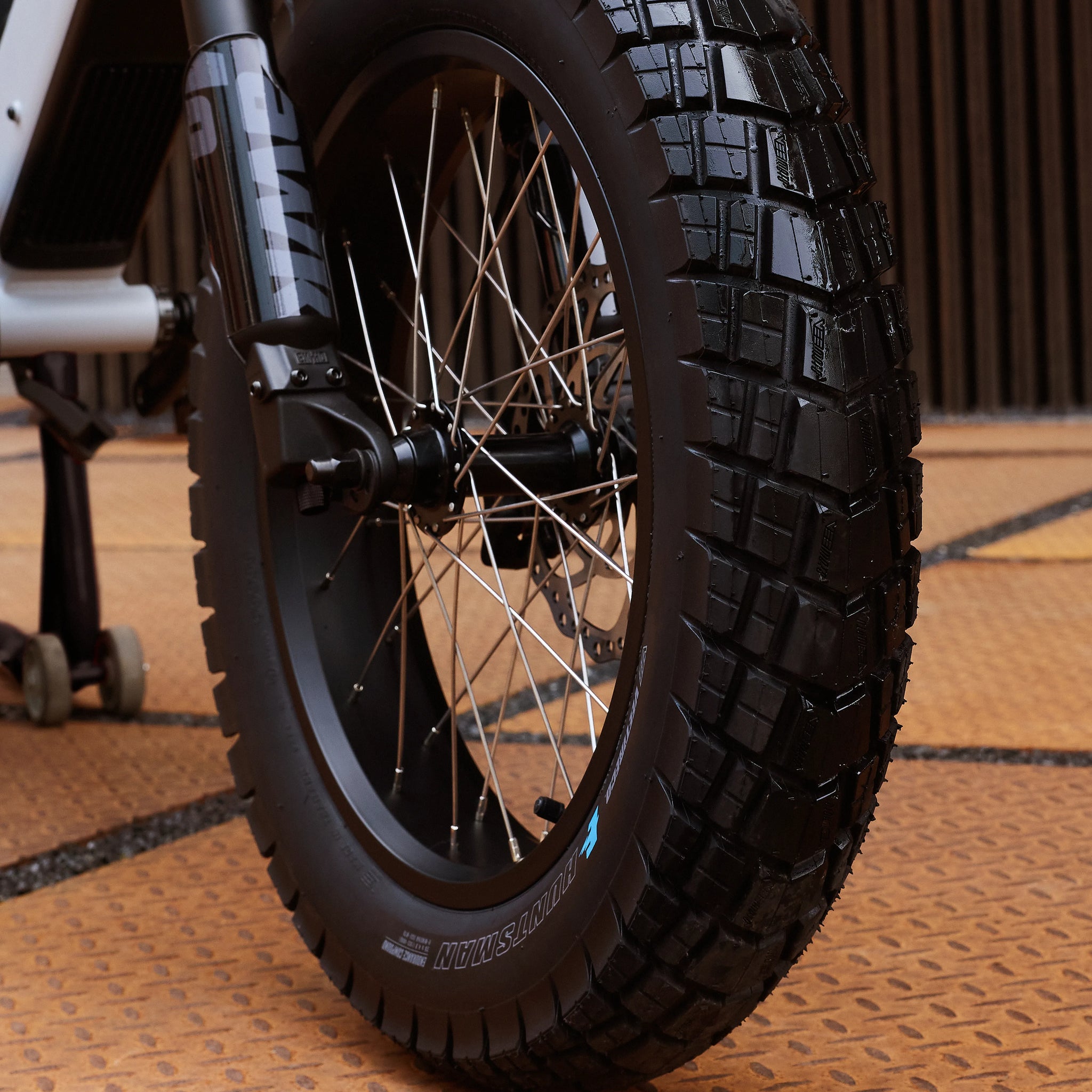

Tire Performance

Dual-purpose off-road tires compatible with both motorcycles and e-bikes, featuring triple-puncture protection built to conquer any terrain.

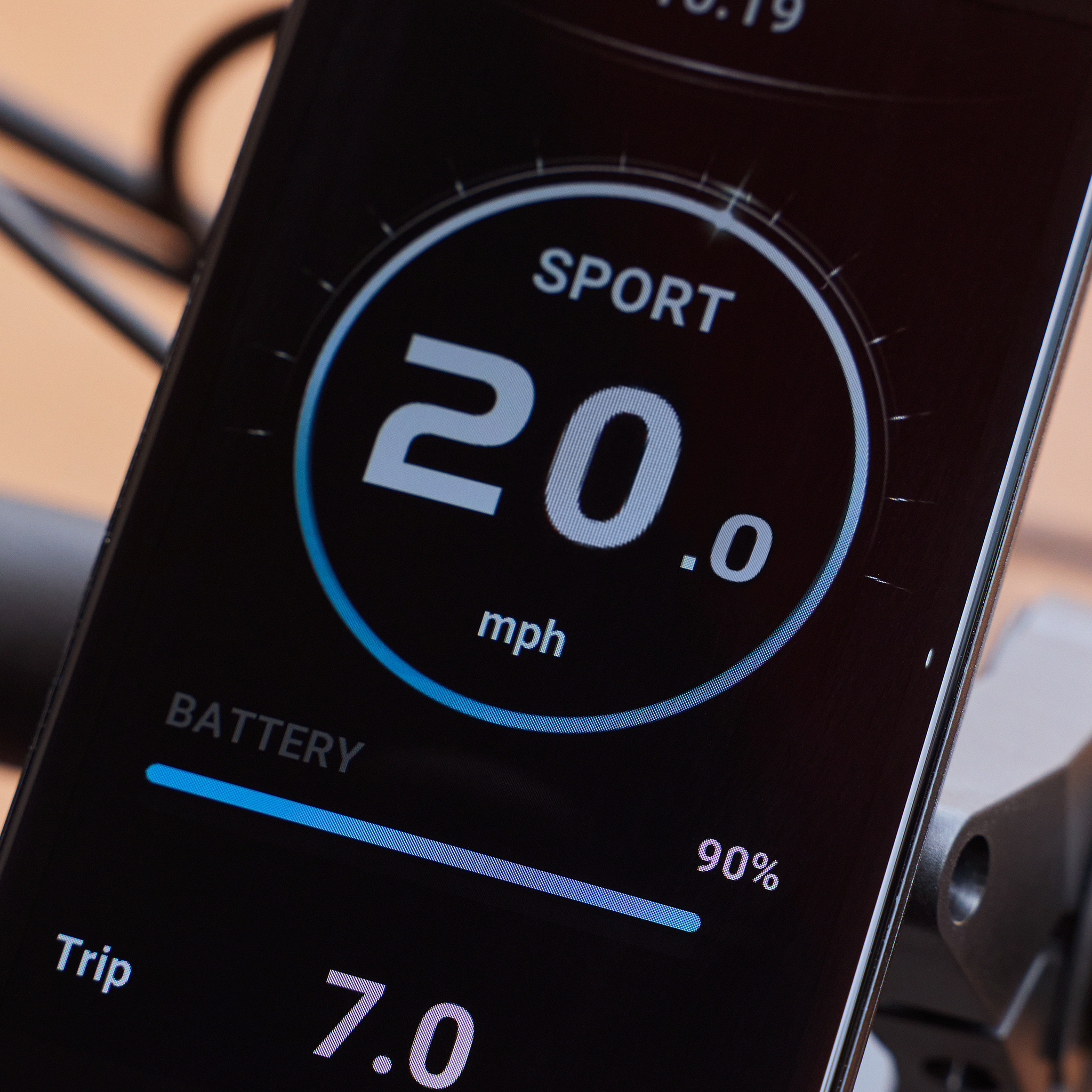

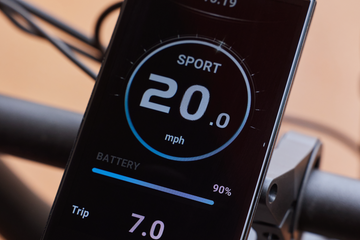

4.6" TFT Smart Display

The 4.6-inch TFT LCD provides a clear and intuitive interface, supporting Bluetooth, OTA updates, navigation, calorie tracking, customizable themes, and comes with a built-in charging port.

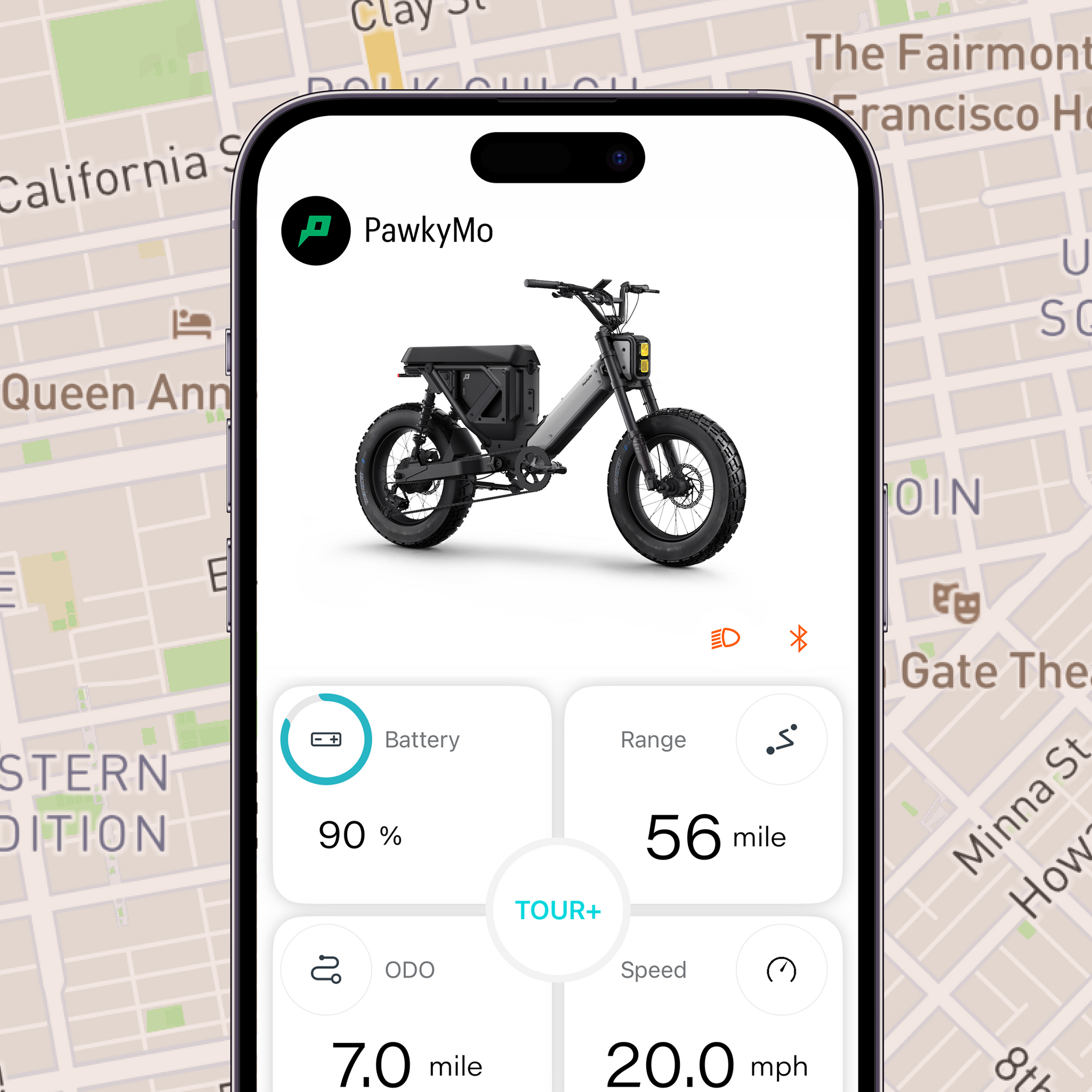

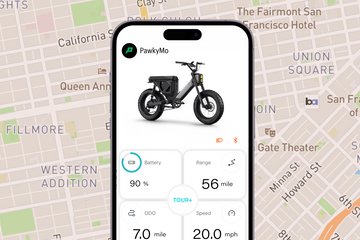

App Functionality

Control your bike via smartphone—custom riding modes, navigation projection, ride data recording, and more.

SPECIFICATIONS

/ AR20

TOP SPEED
20mph
MAX RANGE
35mi
MOUNTING POINTS
30+
MAX PAYLOAD
330lbs

PERFORMANCE

+

Top Speed : 20 MPH(Class 2)
Range : 35miles* (throttle-only / 20mph)
*The data is sourced from the test results of Bafang Laboratory
Battery : 960Wh(21700 lithium ion cells)
Motor : 750w nominal(1300w peak)/ Rear
Throttle : Thumb Throttle
Gearing & Rear Derailleur : 7 speed
Charge Time : 3.5 hrs

FRAME

+

Frame : Aluminum
Mouting Point : 30+
Adjustable Suspensions : Full
Brakes : Hydraulic / 4 Piston Calipers
Tires : 4.0" Front / 4.3" Rear

DIMENSIONS

+

Vehicle Weight : 121lbs
Length x Width x Height : 68" x 28.5" x 43.5"
Rider Weight Limit : 330lbs
Seat Height : 34"

DISPLAY & APP

+

4.6in TFT / Charging Output Port / Calorie
Bluetooth / Navigation / OTA / App control

SAFETY

+

Battery Protection : Full BMS(battery management system) Protections
Waterproof Rate:IPX65-IPX67

WARRANTY

+

Motor：24month
Battery：48month
controller：12month
Chager：12month
Display：12month
Function Switch：12month
Frame：12month
Out tire & Inner tire ：30days
Shock Absorbing Fork：12month
